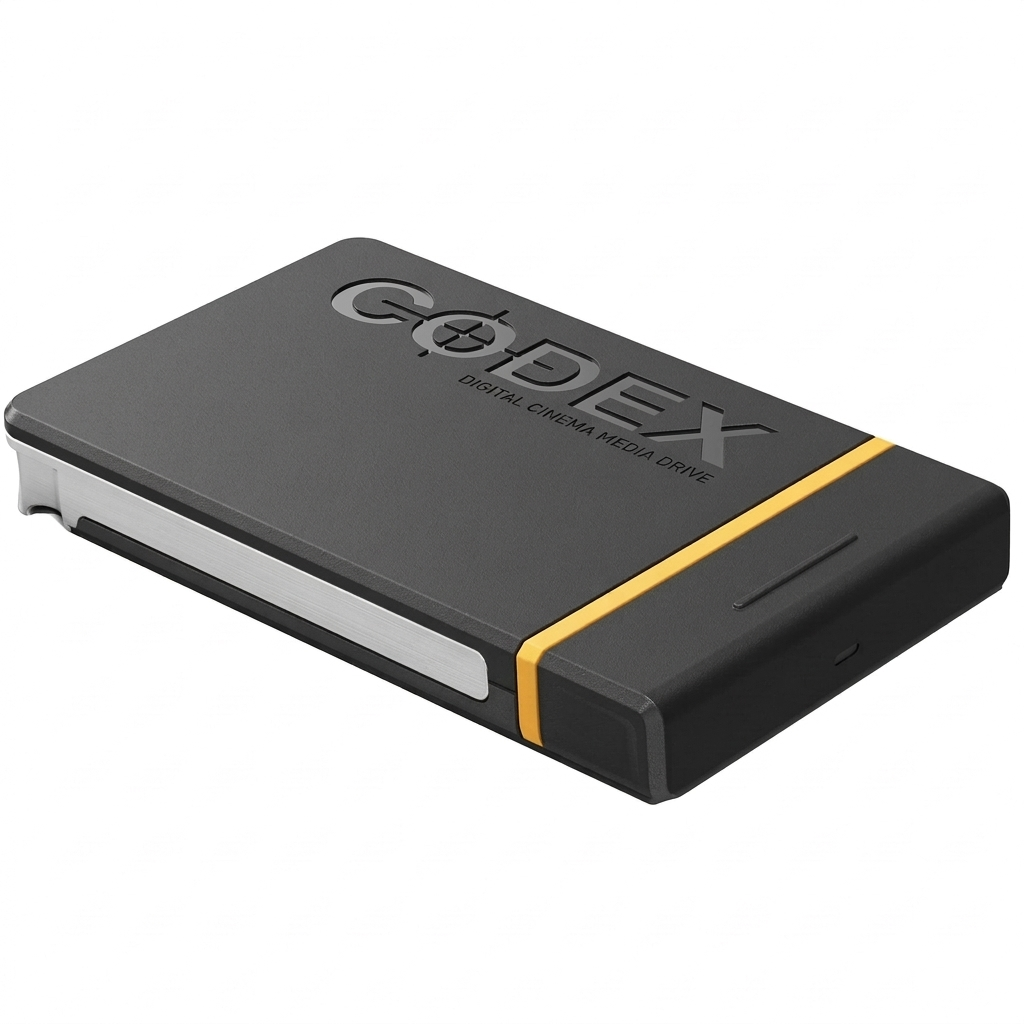

2TB CODEX Compact Drive
The ARRI Codex Compact Drive 2TB is a high-performance, industrial-grade SSD. Marked by a yellow ring for easy identification, it is the primary recording medium for the Arri Alexa 35 Extreme, ARRI ALEXA 35 and ALEXA Mini LF.
- Usable Capacity: 1920 GB.
- Write Speed: Up to 16 Gb/s (~2000 MB/s).
- Read Speed: Up to 20 Gb/s.
| Camera Model | Recording Format | Resolution | Bit Depth | Approx. Record Time (25 fps) |
| ALEXA 35 | ARRIRAW (MXF) | 4.6K (4608 x 3164) | 13-bit | 53 min 50 sec |
| ALEXA 35 | ProRes 4444 XQ | 4.6K (4608 x 3164) | 12-bit | 1 hr 27 min |
| ALEXA 35 | ProRes 4444 | 4.6K (4608 x 3164) | 12-bit | 2 hr 11 min |
| ALEXA Mini LF | ARRIRAW (MXF) | 4.5K (4448 x 3096) | 12-bit | 1 hr 01 min |
| ALEXA Mini LF | ProRes 4444 XQ | 4.5K (4448 x 3096) | 12-bit | 1 hr 32 min |
| ALEXA Mini LF | ProRes 4444 | 4.5K (4448 x 3096) | 12-bit | 2 hr 20 min |
