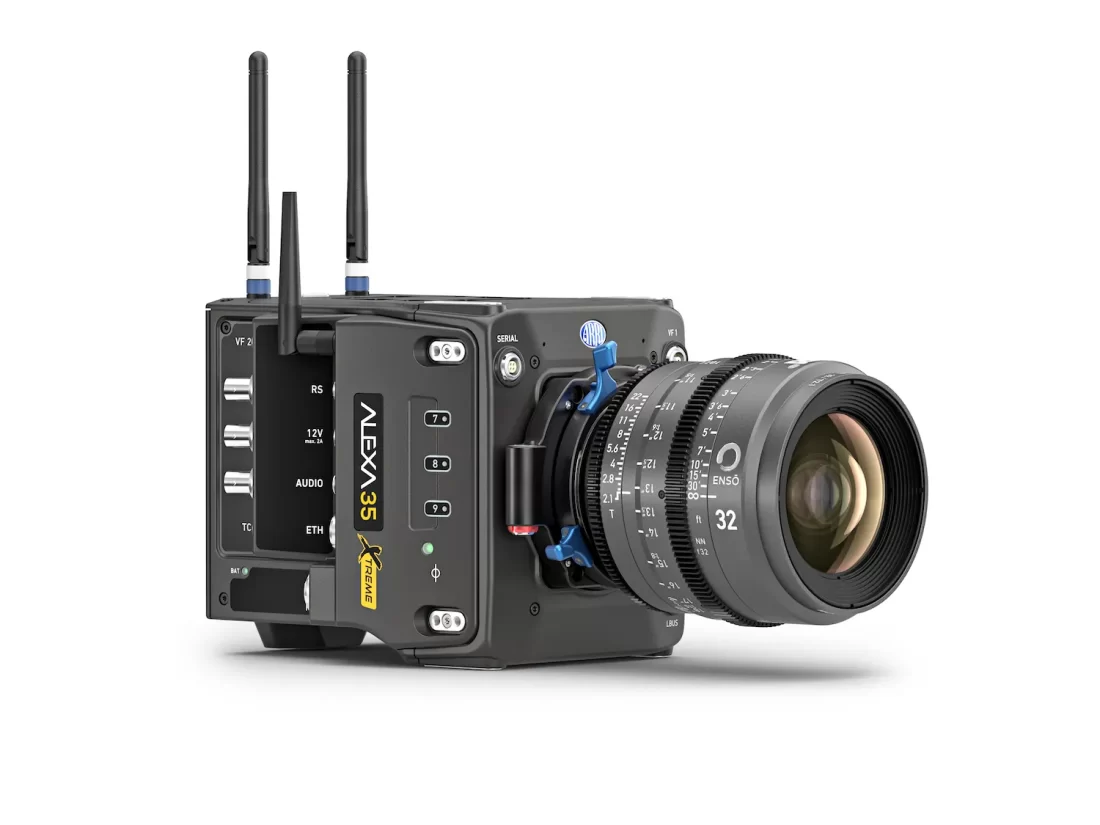

Arri Alexa 35 Xtreme
The Alexa 35 Xtreme is a major revision of the industries trusted workhorse, known for its superior image quality, ease of use and reliability. Building on it’s predecessor’s solid foundation, the Xtreme introduces powerful new hardware, higher speeds for breathtaking slow motion images and the new data efficient codec ARRICORE. New hardware allows frame rates up to 330 fps while maintaining full dynamic range, and a new codec and Sensor Overdrive mode double the limit to 660 fps.
Delivering 2.5 stops more dynamic range than previous ALEXA cameras, film-like highlight handling, better low light performance, and richer colors. The new REVEAL Color Science takes full advantage of the sensor’s image quality and provides a fast, simple workflow, while ARRI Textures enhance in-camera creative control. Easy operation, robust build quality, new electronic accessories, and a completely new mechanical support system round out the ALEXA 35 platform.
Model
ALEXA 35
Sensor
Super 35 format ARRI ALEV 4 CMOS sensor with Bayer pattern colour filter array
Lens Mount
LPL (PL via LPL to PL Adapter)
Recording Format
MXF/ARRIRAW
MXF/Apple ProRes 4444 XQ
MXF/Apple ProRes 4444
MXF/Apple ProRes 422 HQ
File Format
| ARRIRAW | MXF |
| ProRes | MXF |
Resolution
| Sensor Modes | Recording Resolution |
| ARRIRAW 4.6K 3:2 Open Gate | 4608 x 3164 |
| Apple Prores 4.6K 3:2 Open Gate | 4608 x 3164 |
| ARRIRAW 4.6K 16:9 | 4608 x 2592 |
| Apple Prores 4.6K 16:9 | 4096 x 2304 |
| ARRIRAW 4K 16:9 | 4096 x 2304 |
| Apple Prores 4K 16:9 | 4096 x 2304 |
| Apple Prores 4K 16:9 | 3840 x 2160 |
| Apple Prores 4K 16:9 | 2048 x 1152 |
Maximum Frame Rate (PAL)
Media
| Internal Recording | Codex Compact Drive 1TB (CA08-1024)
Codex Compact Drive 2TB (CB16-2048) |
| Setup | USB |
Audio Recording Format
MXF: 2-Channel 24-Bit 48 kHz LPCM Audio
Exposure Index (EI)
| EI Range | 160-3200 ASA |
| Native EI | 800 ASA |
Internal ND Filters
Clear
IRND 0.6 (2 Stops)
IRND 1.2 (4 Stops)
IRND 1.8 (6 Stops)
Batteries
V-Lock (Using V-Lock battery plate)
Inputs
1 x 6-Pin LEMO Input
1 x 5-Pin LEMO Timecode Data
1 x 10-Pin LEMO LAN Data, Control
1 x BNC Sync Control
1 x 7-Pin LEMO Monitor
1 x USB Type-A USB 2.0 Data
1 x Proprietary Viewfinder
1 x 8-Pin LEMO (10.5 to 34 VDC)
Outputs
2x BNC (6G-SDI Out)
1 x 5-Pin LEMO Timecode Data
1 x 10-Pin LEMO LAN Data, Control
1 x BNC Sync Control
1 x 7-Pin LEMO Monitor
1 x USB Type-A USB 2.0 Data
1 x Proprietary Viewfinder
1 x 3-Pin RS (24 VDC)
1 x 2-Pin LEMO (12 VDC)
1 x Proprietary (24 VDC)
Power Consumption
≥65 W
Weight
6 lb / 2.72 kg (body & LPL Mount only)
