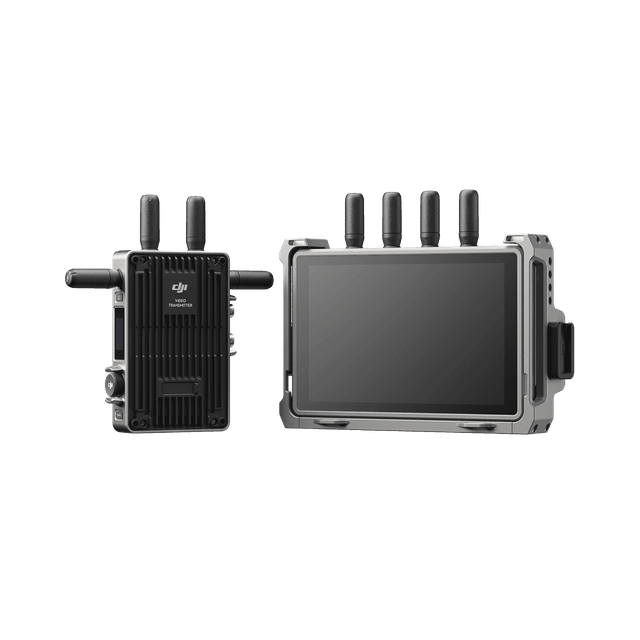

DJI Transmission High Bright Monitor Kit
The DJI Transmission High-Bright Monitor Combo is a professional-grade wireless video system that integrates reception, monitoring, recording, and control into a single solution.
- O3 Pro Transmission: Delivers a 1080p/60fps live feed with a maximum bitrate of 50 Mbps.
- Long-Range Distance: Offers a transmission range of up to 6 km (roughly 3.7 miles) in open, interference-free environments.
- High-Bright Display: The 7-inch touchscreen monitor features up to 1,500 nits (some sources cite 2,000 nits) of brightness, ensuring visibility in direct sunlight.
- Ultra-Low Latency: Uses the same chip solution as the Ronin 4D to achieve end-to-end ultra-low latency, approximately 68 ms to 70 ms.
- Multiple Receiving Modes: Supports Control mode for two receivers with remote control capabilities and Broadcast mode for an unlimited number of receivers.
- Integrated Control: Built-in gyroscopic sensor allows for motion control of gimbals like the Ronin 2 and RS 3 Pro/ RS 4 Pro.
Our kits come standard as a 1:1, however we stock extra receiver and receiver monitor units.
I/O
| Feature | Video Transmitter (TX) | High-Bright Remote Monitor (RX) |
|---|---|---|
| Video Input | 1x HDMI 1.4 (Type-A) 1x 3G-SDI (BNC) |
1x HDMI 2.0 (Type-A) — Supports up to 4K/60fps |
| Video Output | 1x 3G-SDI Loop Out | 1x 3G-SDI 1x HDMI 1.4 (Type-A) |
| Audio | SDI & HDMI Embedded | 3.5mm Stereo Headphone Jack |
| Data / Control | USB-C (Firmware & Gimbal Control) | USB-C (Webcam use & Firmware) microSD Slot (Recording/Playback) |
| Power Input | DC Input (6.8V to 17.6V) WB37 / NP-F Battery |
DC Input (6.8V to 17.6V) WB37 / NP-F Battery |
| Power Output | Power Output Port (6 to 18V) | N/A (Standard) |
Dimension
| Component | Dimensions (L×W×H) | Weight |
|---|---|---|
|
DJI Video Transmitter
|
127 × 87 × 26 mm | 350 g (0.77 lbs) |
|
High-Bright Remote Monitor
|
213 × 135 × 51 mm | 727 g (1.6 lbs) |
Video Format
| Category | Format / Resolution | Supported Frame Rates |
|---|---|---|
| Resolution | 1080p | 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 |
| 1080i | 50, 59.94, 60 | |
| 720p | 50, 59.94, 60 | |
| Colour Sampling | SDI: YCbCr 4:2:2 10-bit | N/A |
| HDMI: RGB 4:4:4 10-bit | N/A | |
| Audio Format | 16-bit 48 kHz PCM | Real-time monitoring supported |
| Wireless Video | H.264 (Compressed) | Up to 1080p/60fps at 50 Mbps |
| Proxy Recording | 1080p H.264 | Up to 60fps (Recorded to microSD) |
