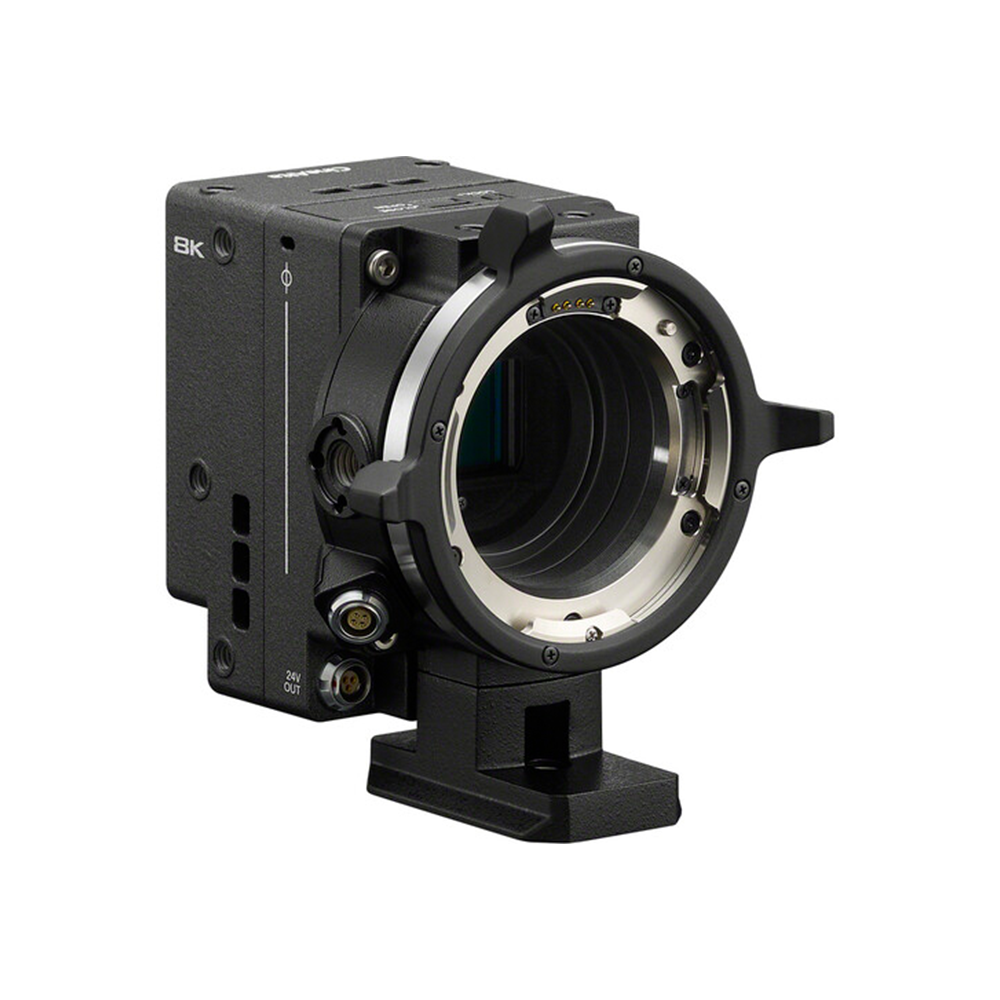

Sony Venice Rialto Mini Extension System

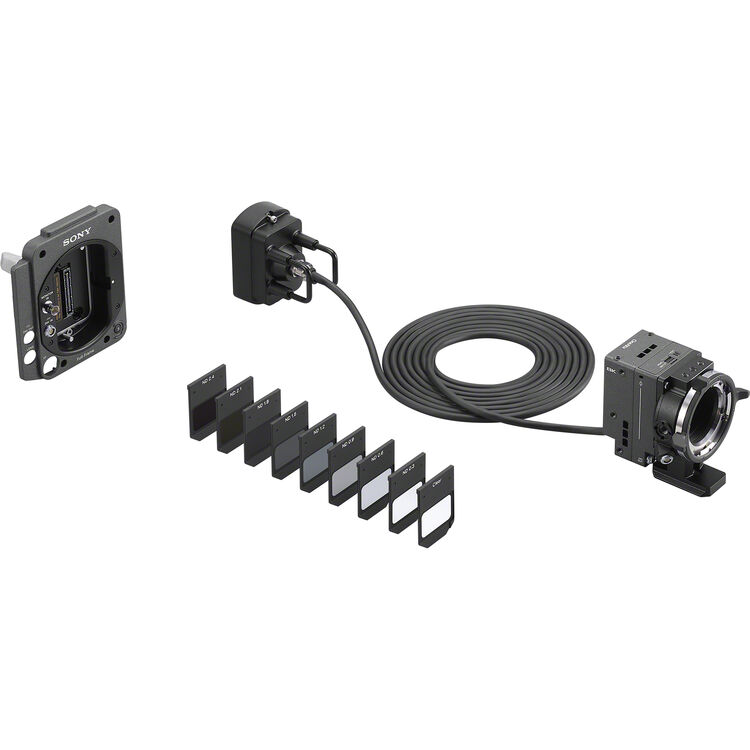

Compatible with VENICE 2 8K and 6K cameras, this 8.6K mini successor to the Rialto sensor block extension is super compact and lightweight, letting you position your camera in the tightest setups. This extension is built around the same full-frame 8.8K sensor found in the VENICE 2 8K camera. The mini extension system features a 4.5m or a 12m detachable cable for transmitting video and metadata, letting you first easily position it in your setup and then connect it to your camera body. Ideal for handheld and gimbal use and jib, crane, and car rigs, this super compact and lightweight system is 70% smaller than the prior version, enabling you to capture shots from tight spaces that were previously inaccessible.
Model
CBK-3610XS
Camera Compatibility
Sony Venice Cinema Camera
Cable Length
2.7 m (9.8 ft) or 5.5 m (18 ft) when utilising the supplied extension cable.
Outputs

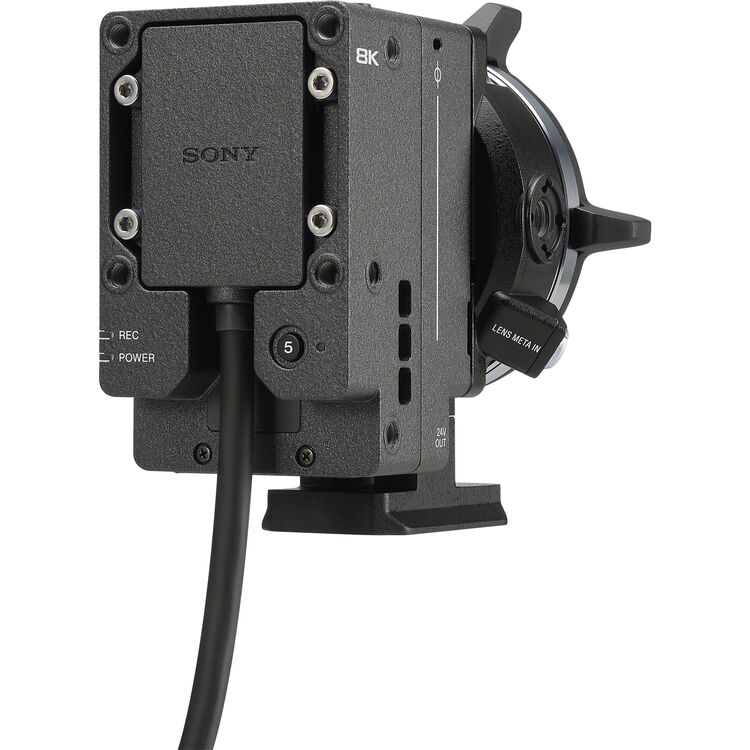

Camera Head
– HD-SDI out (BNC)
– 24 -V power out (Fischer 3pin)
Camera Body Plate
– 24V DC input connector (Fischer 3pin)
– HD-SDI input (BNC)
* When 12V DC output is required, the Hirose 4pin connector on the Venice camera can be utilized by using Hirose 4pin to Fischer 3pin cable.
Power consumption
Approx. 2.4 W (with 2.7 m extension)
Approx. 3.9 W (with 5.5 m extension)
Weight
CBK-3610XS
2.75 kg / 6lb (excluding supplied accessories)
Imager block
PL: Approx. 1.9 kg (4 lb 3.0 oz)
E: Approx. 1.4 kg (3 lb 1.4 oz)
Advanced Features
The Sony Rialto preserves full use of the advanced features the VENICE offers, such as its built-in 8-step glass ND filter system, Dual Base ISO, and more.
