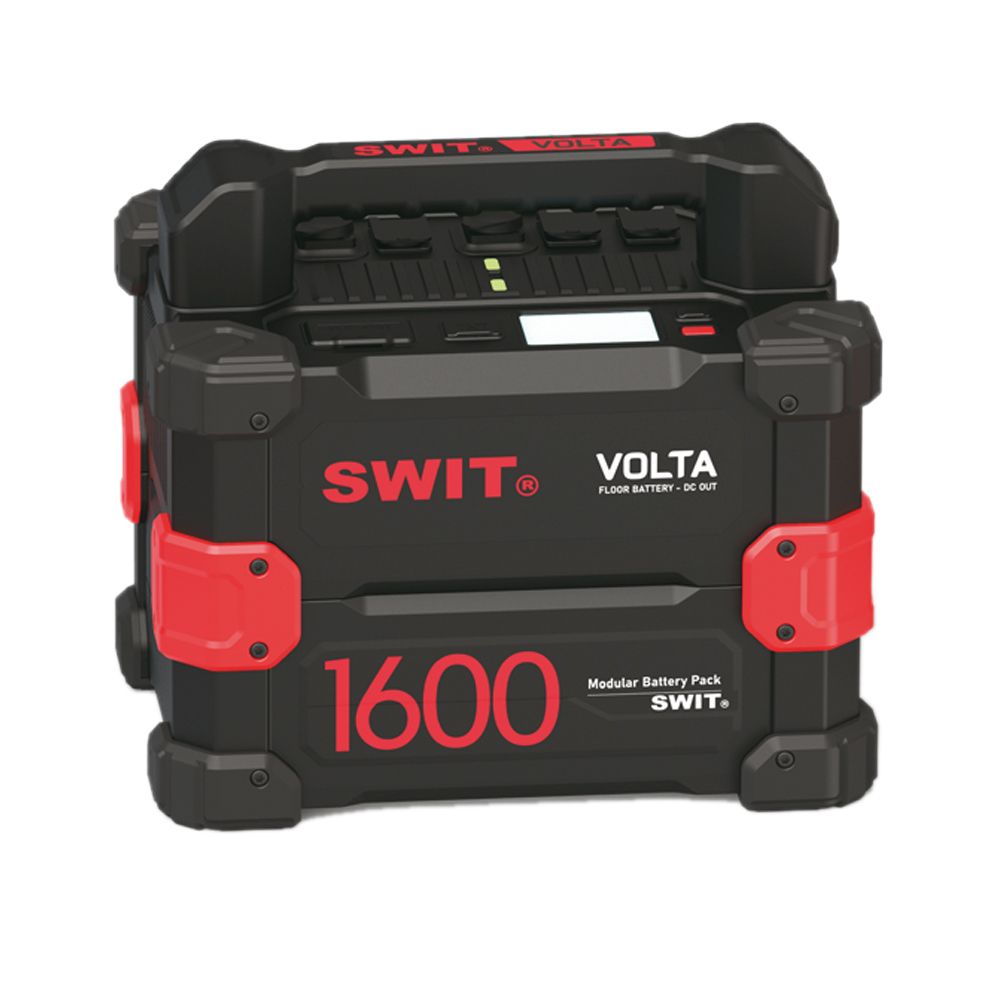

Swit Volta
The SWIT VOLTA is a professional modular battery system designed for high-power cinematography and broadcast equipment. It uses a “stackable” design that allows users to increase power capacity by adding battery modules to a control unit.
- VOLTA-DC1600 (DC Version): A modular floor battery designed for film carts and location shoots.
- Capacity: 1600Wh per module, expandable up to 8 units (12.8kWh).
- Outputs: Simultaneous DC outputs of 48V (1200W), 24V (360W), 12V (120W), and USB-C (65W).
- Max Load: 1700W constant total load.
- VOLTA PRO (AC/DC Version): A high-capacity mobile power station roughly the size of carry-on luggage.
- Capacity: 8890Wh (approx. 9kWh) using four detachable battery packs.
- Outputs: Dual AC 230V (2400W total) and triple DC 48V (800W each).
- Performance: 3200W constant load and 4800W surge capacity.
Core Features
- Modular Design: Users can hot-swap internal battery packs or daisy-chain units for extended runtime.
- Fast Charging: Built-in AC chargers allow full recharges in 4.5 to 6.5 hours depending on the model.
- Solar Compatibility: Supports solar panel charging via an XT60 interface (up to 400W–800W).
- Extreme Durability: Features an IP54-rated rainproof all-metal housing and can operate in temperatures as low as -20°C.
- Intelligent Monitoring: Includes an LCD display for remaining runtime and power load, with a battery management system (BMS) for safety.
Dimensions
The VOLTA-DC1600 uses a stacking system where each additional battery unit adds to the height.
Dimensions (Single Unit): 32x24x28cm
Weight (Single Unit): 13kg.
- Expansion: You can stack up to 8 units vertically for a total capacity of 12.8kWh.
