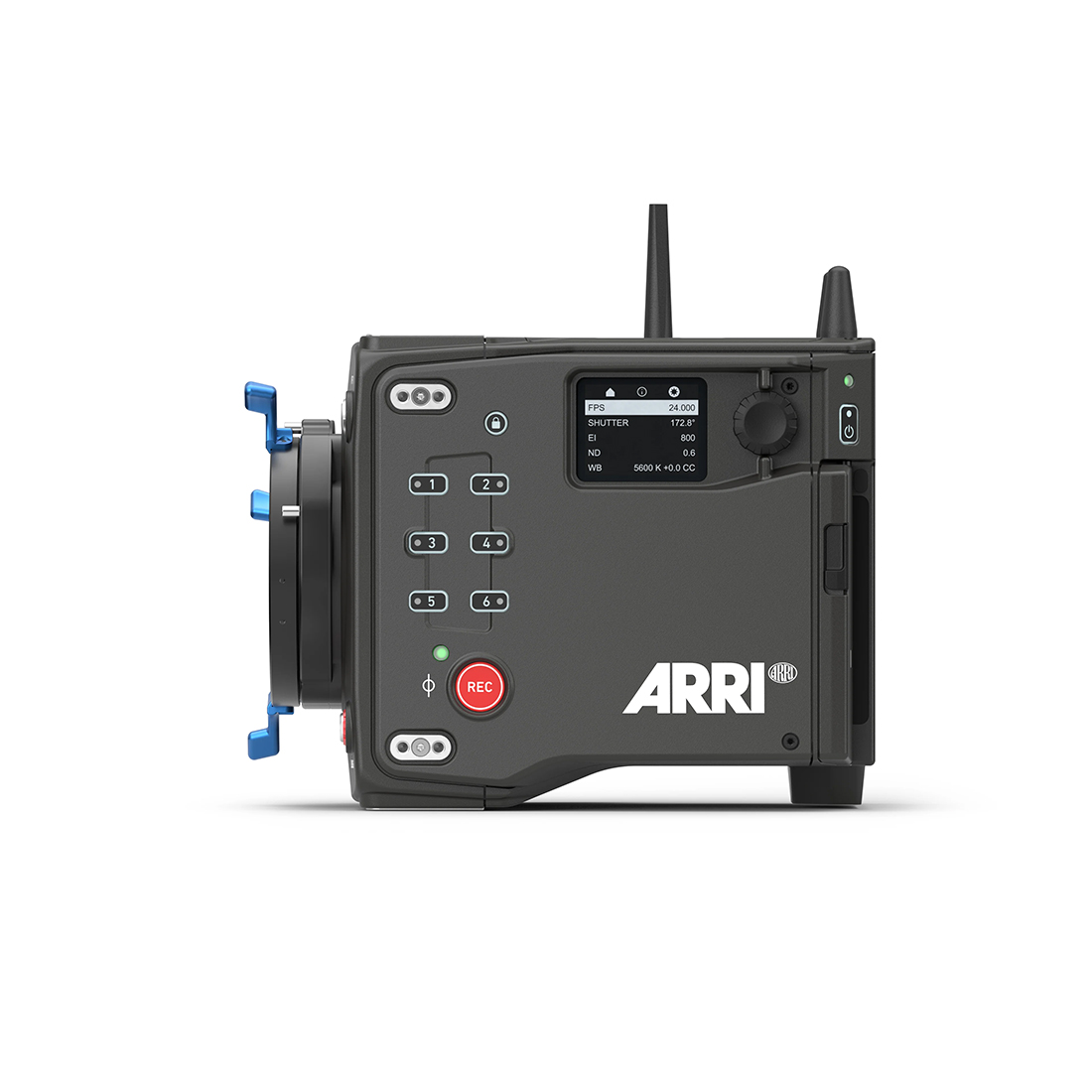

Arri Alexa 35
The ALEXA 35 is ARRI’s new 4K Super 35 camera, delivering 2.5 stops more dynamic range than previous ALEXA cameras, film-like highlight handling, better low light performance, and richer colors. The new REVEAL Color Science takes full advantage of the sensor’s image quality and provides a fast, simple workflow, while ARRI Textures enhance in-camera creative control. Easy operation, robust build quality, new electronic accessories, and a completely new mechanical support system round out the ALEXA 35 platform.
ARRI ALEXA 35 Record Times (SUP 1.1)
Model
ALEXA 35
Sensor
Super 35 format ARRI ALEV 4 CMOS sensor with Bayer pattern colour filter array
Lens Mount
LPL (PL via LPL to PL Adapter)
Recording Format
MXF/ARRIRAW
MXF/Apple ProRes 4444 XQ
MXF/Apple ProRes 4444
MXF/Apple ProRes 422 HQ
File Format
| ARRIRAW | MXF |
| ProRes | MXF |
Resolution
| Sensor Modes | Recording Resolution |
| ARRIRAW 4.6K 3:2 Open Gate | 4608 x 3164 |
| Apple Prores 4.6K 3:2 Open Gate | 4608 x 3164 |
| ARRIRAW 4.6K 16:9 | 4608 x 2592 |
| Apple Prores 4.6K 16:9 | 4096 x 2304 |
| ARRIRAW 4K 16:9 | 4096 x 2304 |
| Apple Prores 4K 16:9 | 4096 x 2304 |
| Apple Prores 4K 16:9 | 3840 x 2160 |
| Apple Prores 4K 16:9 | 2048 x 1152 |
Maximum Frame Rate (PAL)
Media
| Internal Recording | Codex Compact Drive 1TB (CA08-1024)
Codex Compact Drive 2TB (CB16-2048) |
| Setup | USB |
Audio Recording Format
MXF: 2-Channel 24-Bit 48 kHz LPCM Audio
Exposure Index (EI)
| EI Range | 160-3200 ASA |
| Native EI | 800 ASA |
Internal ND Filters
Clear
IRND 0.6 (2 Stops)
IRND 1.2 (4 Stops)
IRND 1.8 (6 Stops)
Batteries
V-Lock (Using V-Lock battery plate)
Inputs
1 x 6-Pin LEMO Input
1 x 5-Pin LEMO Timecode Data
1 x 10-Pin LEMO LAN Data, Control
1 x BNC Sync Control
1 x 7-Pin LEMO Monitor
1 x USB Type-A USB 2.0 Data
1 x Proprietary Viewfinder
1 x 8-Pin LEMO (10.5 to 34 VDC)
Outputs
2x BNC (6G-SDI Out)
1 x 5-Pin LEMO Timecode Data
1 x 10-Pin LEMO LAN Data, Control
1 x BNC Sync Control
1 x 7-Pin LEMO Monitor
1 x USB Type-A USB 2.0 Data
1 x Proprietary Viewfinder
1 x 3-Pin RS (24 VDC)
1 x 2-Pin LEMO (12 VDC)
1 x Proprietary (24 VDC)
Power Consumption
≥65 W
Weight
6 lb / 2.72 kg (body & LPL Mount only)
