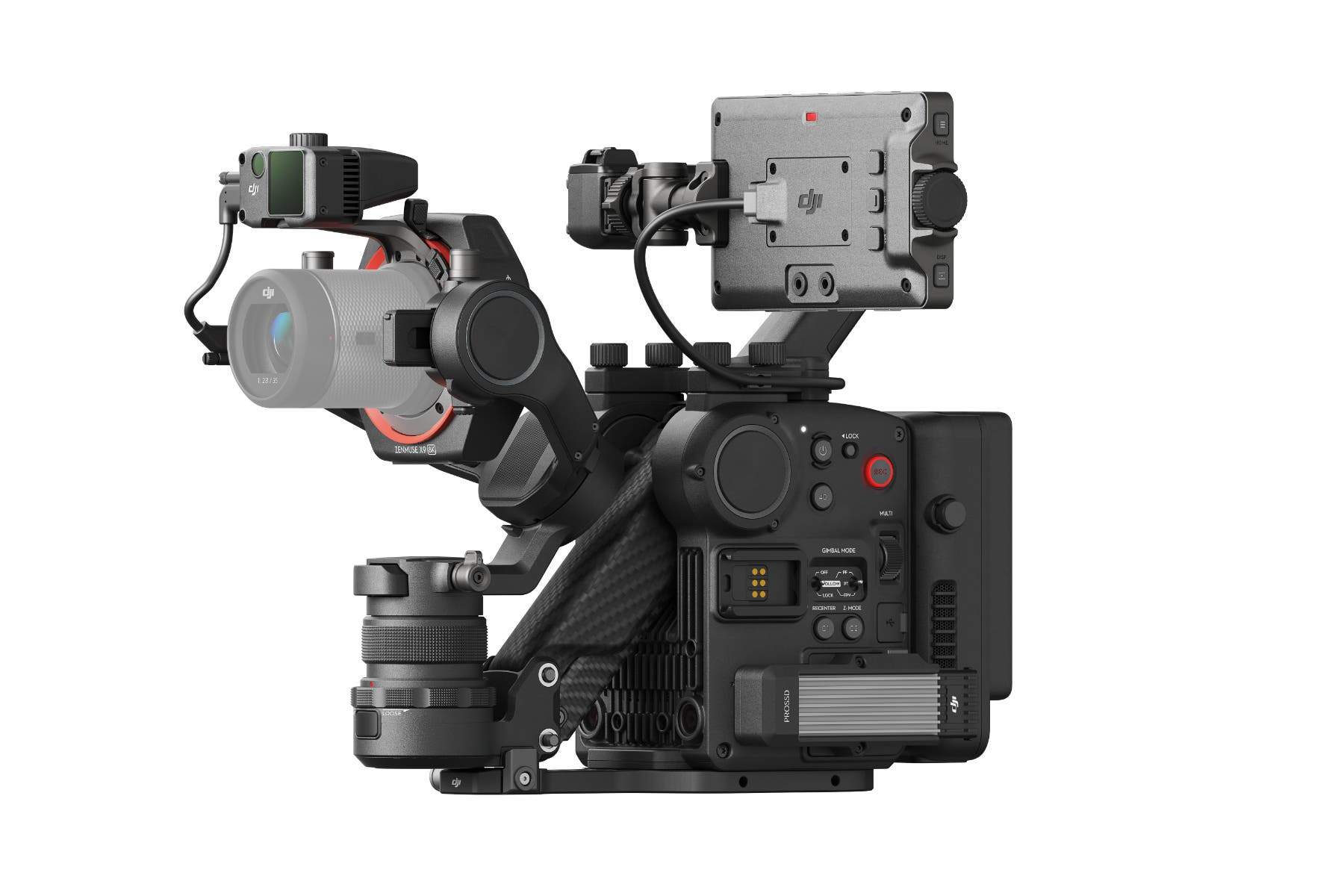

DJI Ronin 4D 8k
The DJI Ronin 4D 8K is a high-end cinema camera combining a full-frame Zenmuse X9-8K sensor with a 4-axis stabilization system. It records up to 8K at 60fps and 4K at 120fps, with 14.7 stops of dynamic range and dual native ISOs of 800 and 4000 for excellent low-light performance.
Built for professionals, it features a modular carbon fiber body, 5.5-inch touchscreen, and LiDAR autofocus. The CineCore 3.0 processor supports ACES workflows, with lens mount options including DJI DL, Leica M, Sony E, and L-Mount. Weighing about 4.67 kg, it’s a versatile tool for advanced cinematography.
Model
DJI Ronin 4D 8k
Sensor
DJI Zenmuse X9-8k Full Frame Sensor
Lens Mount
E, M, DL or PL (limited PL Lensing options)
Recording Format
Apple ProRes RAW HQ/Apple ProRes RAW*
Apple ProRes 4444 XQ*
Apple ProRes 422 HQ/Apple ProRes 422 LT
H.264 (4:2:0 10-bit)
*via SSD module
Media
| Internal Recording | SSD or CF Express Type B |
| Setup | USB |
Audio Recording Format
LPCM 2-ch, 24-bit 48kHz
Exposure Index (EI)
| EI Range | EI 200-12800 |
| Native EI | DUAL 800/5000 |
Internal ND Filters
Batteries
DJI TB50 (97w)
Inputs
1 x 3.5mm TRS Stereo Input Jack
1 x USB3.1 Type-C Data Port
1 x 6-pin 1B DC-IN (DC 12-30 V)
1 x HDMI Type-A Video Output Port
Outputs
1x BNC (6G-SDI Out)
2 x Stereo 3-Pin XLR Audio
1 x 3.5mm Stereo Output Jack
1 x BNC Timecode
Weight
