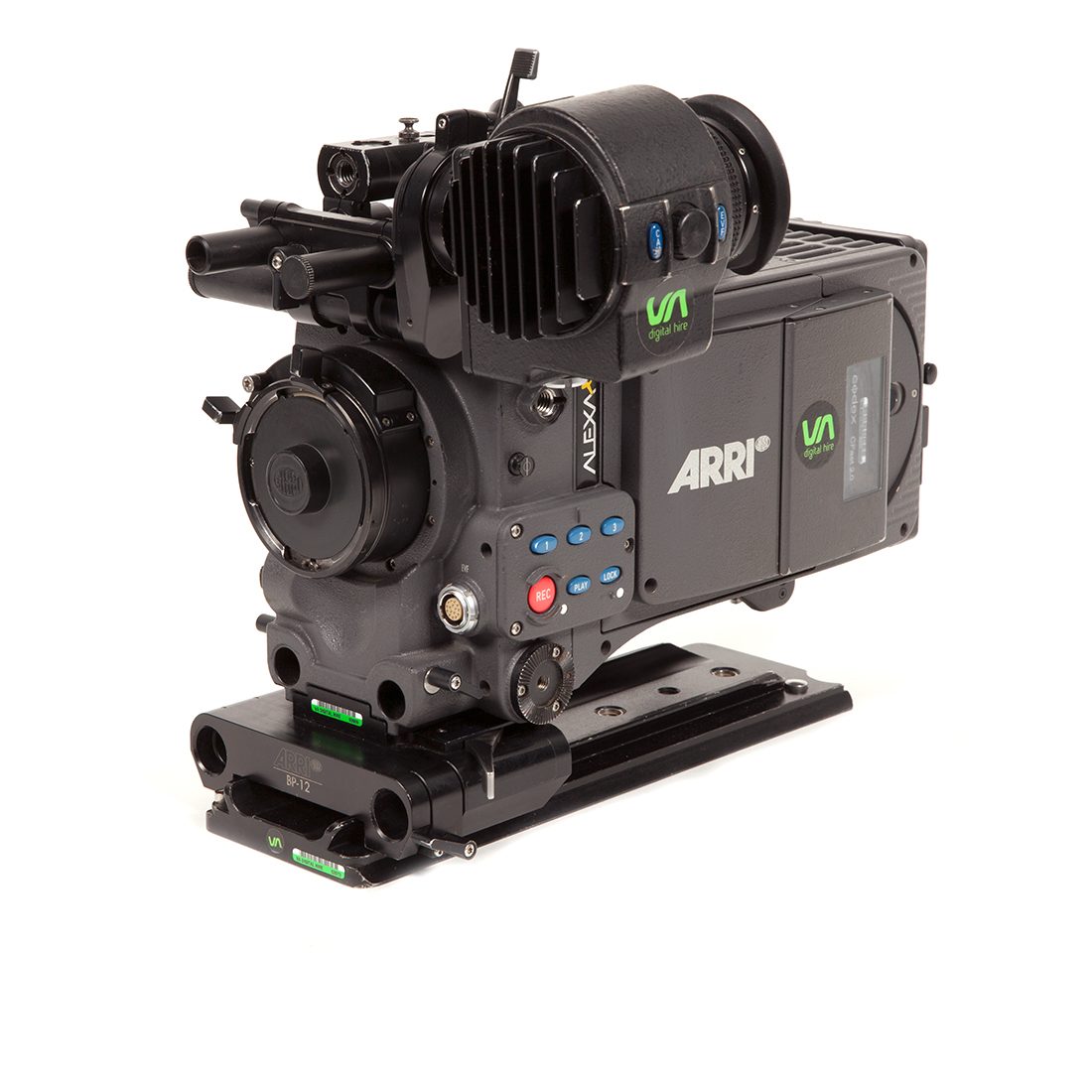

Arri Alexa XT

The Arri Alexa XT features ARRIRAW or ProRes recording internally at up to 120 fps.


Arri Alexa XT


35mm ALEV III CMOS with bayer pattern colour filter array

Lens Mount


Recording Format

ProRes 12-bit 4:4:4:4 XQ / 4:4:4:4
ProRes 10-bit 4:2:2 HQ / 4:2:2

File Format

ProRes MOV


ARRIRAW Open Gate 3424×2202
ARRIRAW 4:3 2.8K 2880×2160
ARRIRAW 6:5 2.8K 2578×2160
ARRIRAW 16:9 2.8K 2880×1620
ProRes 16:9 3.2K 3200×1782
ProRes 4:3 2K 2048×1536
ProRes 16:9 2K 2048×1152
ProRes 16:9 HD 1920×1080

Maximum Frame Rate (PAL)

ARRIRAW Open Gate 75 fps
ARRIRAW 4:3 2.8K 90 fps
ARRIRAW 6:5 2.8K 96 fps
ARRIRAW 16:9 2.8K 120 fps
ProRes 16:9 3.2K 30 fps
ProRes 4:3 2K 48 fps
ProRes 16:9 2K 60 fps
ProRes 16:9 HD 4:4:4:4 XQ 75 fps
ProRes 16:9 HD 4:4:4:4 / 4:2:2 HQ / 4:2:2  120 fps


Internal Recording XR Capture Drive
Setup USB

Audio Recording Format

24-bit 48 kHz

Exposure Index (EI)

EI Range 160-3200 ASA
Native EI 800 ASA


V-Lock (Using V-Lock battery plate)


1x XLR 5-pin (Audio)

1x BNC (Ret/Sync in)

1x 2-pin Fischer (Bat)

2x Fischer 3-pin (RS)



2x BNC (Rec Out)

1x BNC (Monitor Out)

1x Lemo 16-pin (Ext)

1x Lemo 2-pin 12V (Power)

1x Lemo 16-pin (EVF)

1x Lemo 10-pin (Ethernet)

2x Fischer 3-pin (RS)

1x TRS 3.5mm Mini-jack (Audio)


6.6 kg (body only)
9.0 kg (with accessories*)

*Including camera body, body cap. viewfinder with cable, cage system, BP-9, aerial, 2x 15mm rods and wooden camera D-Box
