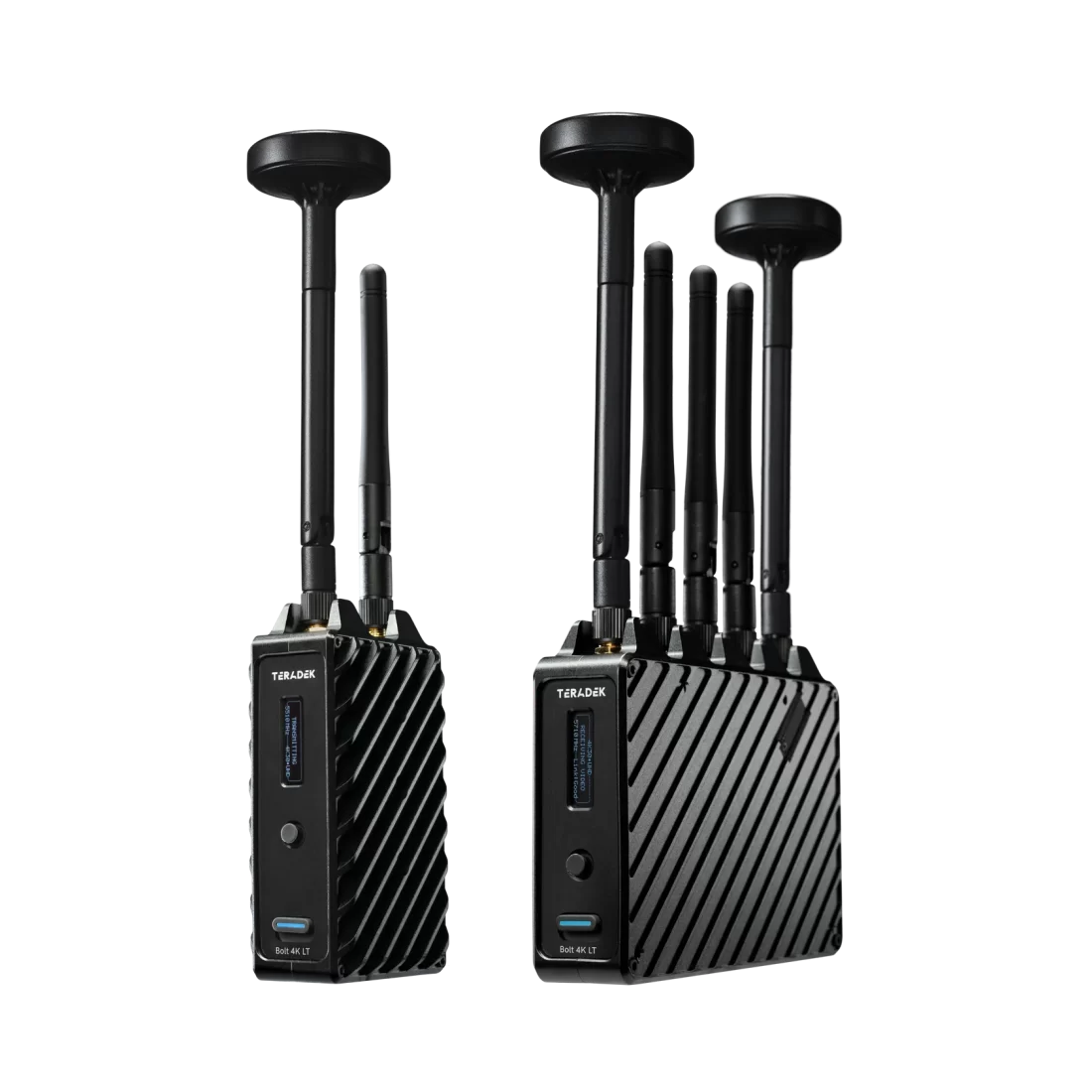

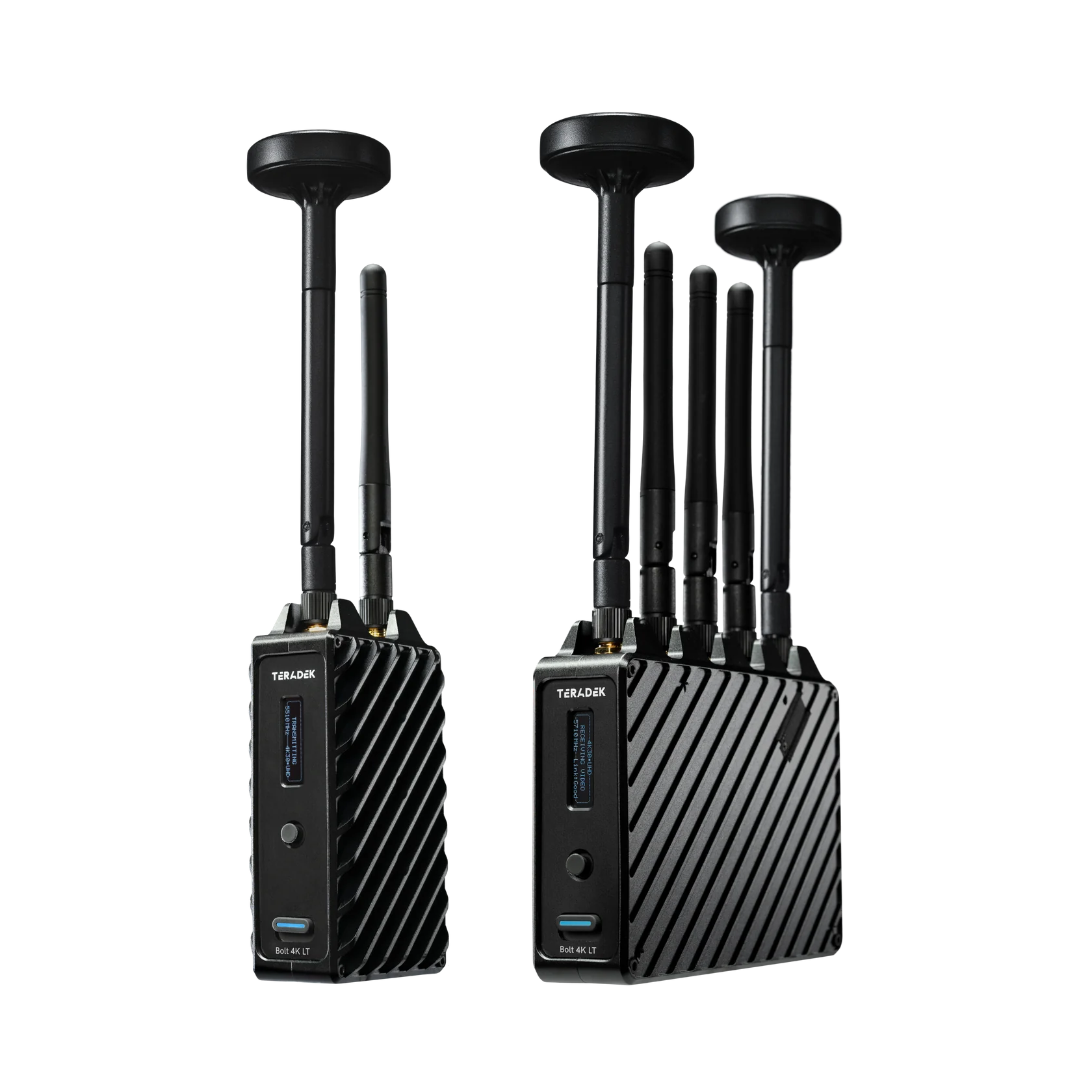

Teradek Bolt 4k Max LT Kit
The Teradek Bolt 4K LT MAX is a high-performance, long-range wireless video transmission system designed for professional film and video production. It is the most powerful model in the LT series, offering significantly extended range and advanced features like Broadcast Mode for connecting unlimited receivers.
- Transmission Range: Transmits up to 5,000+ feet (1.5km) line-of-sight when used with the Array 4K Panel Antenna.
- Video Quality: Supports up to 4K30 via HDMI and 1080p60 via 3G-SDI with 10-bit 4:2:2 HDR.
- Zero Latency: Features Teradek’s patented technology for real-time transmission with less than 1ms delay.
- Connectivity: Includes one 3G-SDI and one HDMI 2.0 input on the transmitter, with corresponding outputs on the receiver and cross-conversion support.
- Compatibility: Fully cross-compatible with the entire Bolt 4K and Bolt 6 families.
I/O
| Feature | Transmitter (TX) | Receiver (RX) |
|---|---|---|
| Video Input | 1x 3G-SDI (BNC), 1x HDMI 2.0 (Type-A) | 1x 2-pin Lemo (Power Input only) |
| Video Output | 1x 3G-SDI (BNC) Loop-out | 2x 3G-SDI (BNC), 1x HDMI 2.0 (Type-A) |
| Power Input | 6-28 VDC (2-pin Circular Locking) | 6-28 VDC (2-pin Circular Locking) |
| Power Consumption | Up to 9 Watts | Up to 11 Watts |
| Configuration | USB 3.0 Mini-B (Firmware) | USB 3.0 Micro-B (Firmware) |
| Metadata | Supports SDI Timecode & Start/Stop | Supports 3D LUTs & Metadata |
Dimensions
| 10.3 x 6.0 x 3.3 cm / 4.1 x 2.4 x 1.3 in | 206g / 7.3 oz |
Video Format
| Interface | Resolution | Frame Rates (fps) | Bit Depth & Color |
|---|---|---|---|
| HDMI | Up to 4K (3840 x 2160) | 23.98, 24, 25, 29.97, 30 | 10-bit 4:2:2 |
| 3G-SDI | Up to 1080p | 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 | 10-bit 4:2:2 |
| 3G-SDI (High Speed) | 1080p | 120 (supported by some firmware) | 10-bit 4:2:2 |
