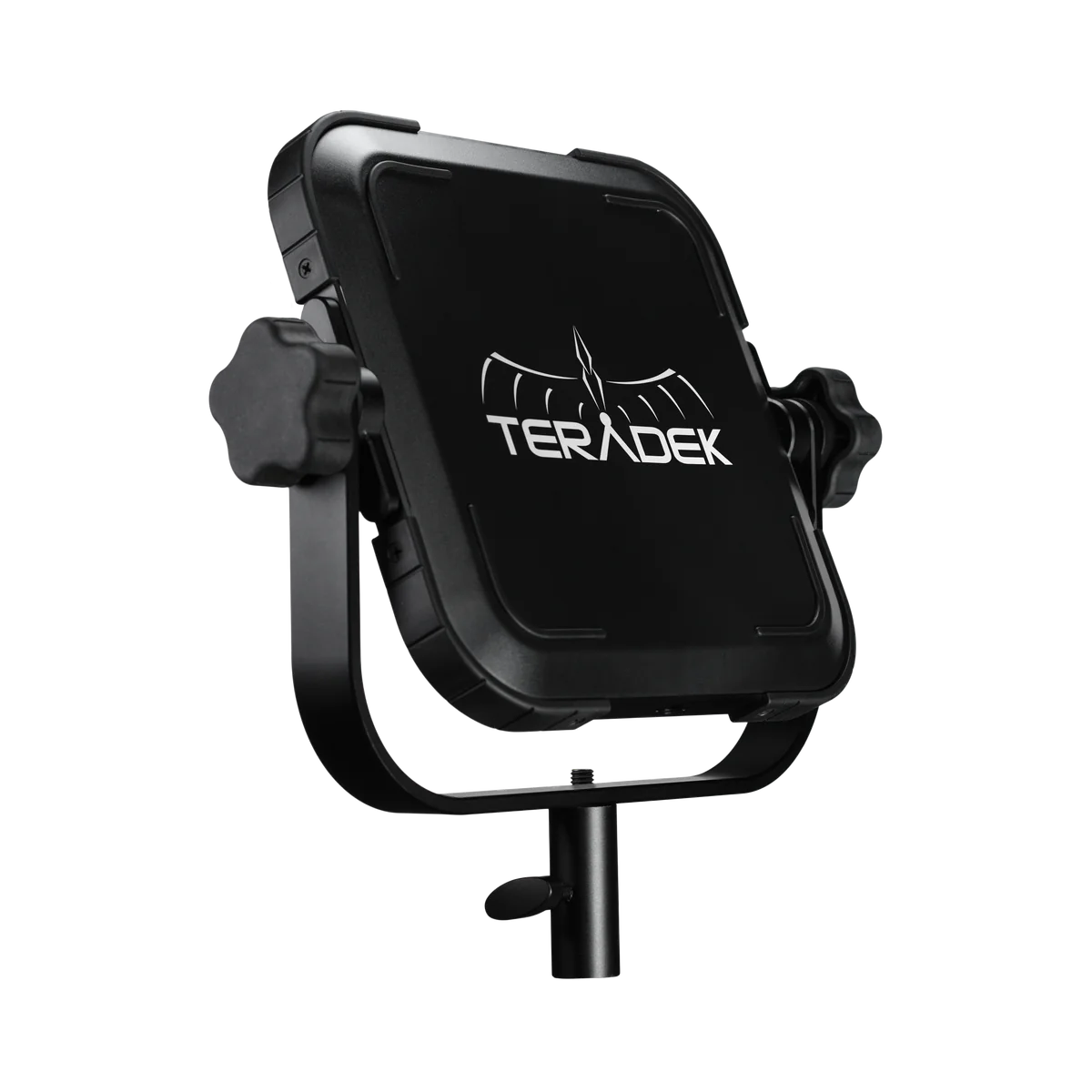

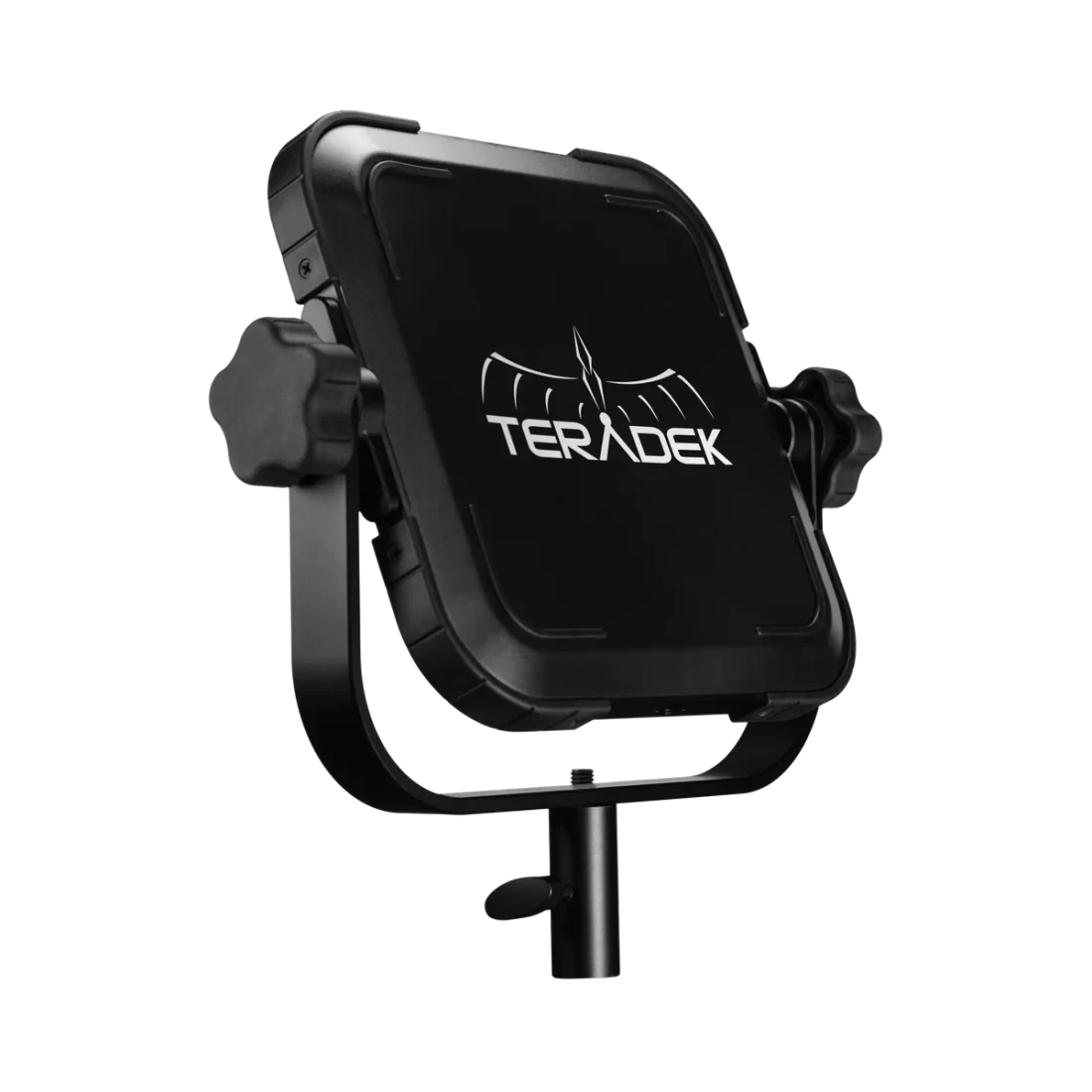

Teradek Antenna Array

The Teradek Antenna Array is a high-gain, directional panel antenna designed to enhance the performance and range of Teradek Bolt wireless video systems. By focusing the wireless signal into a narrower cone, it significantly reduces interference and provides a more robust connection in challenging RF environments.

Maximum Range: Allows compatible Bolt 4K models to reach their full potential range of up to 5,000 feet (1.5km) line-of-sight.
Frequency Range: Operates across the 4.9 – 7.3 GHz spectrum, making it compatible with both 5GHz and the newer 6GHz (U-NII 5) bands used by the Bolt 6 series.
Antenna Composition: Features a MIMO (Multiple Input/Multiple Output) design consisting of:
- 3 x 16 dBi antennas.
- 2 x 14 dBi antennas.
- 1 x 2 dBi omnidirectional antenna (used for signal reception when the transmitter is outside the main directional cone).
Build Quality: Constructed from lightweight, UV-protected plastic and aluminum alloy to withstand outdoor production conditions.
