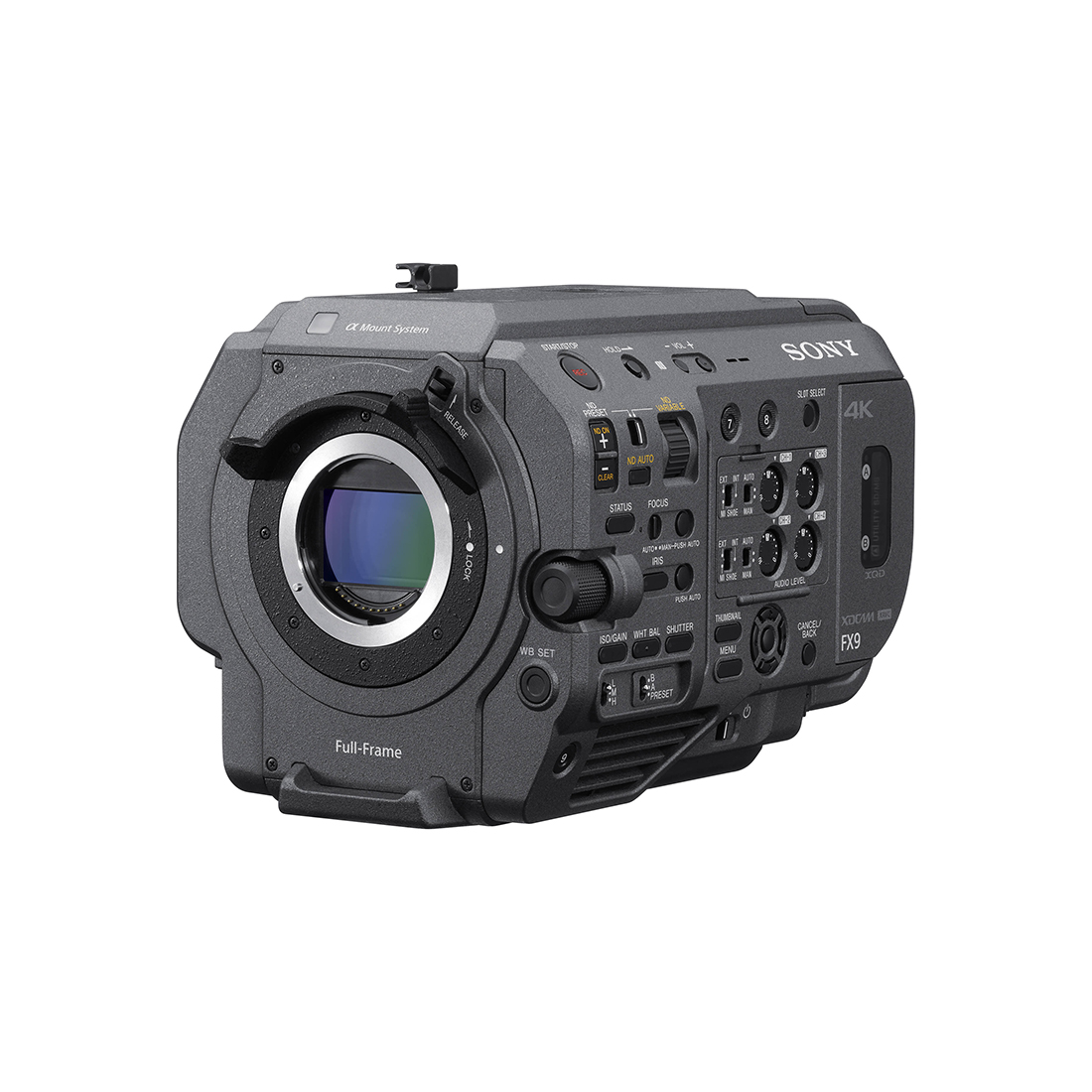

Sony PXW-FX9 Full Frame 6K Camera

The Sony FX9 features a full-frame, oversampled 6K Exmor R CMOS sensor that allows you to capture 4K UHD recording at up to 50 fps, 10-bit Super 35 4K at 120 fps and 16-bit RAW via the Sony XDCA-FX9 Extension unit. The Fast Hybrid AF autofocus system allows for accurate focus and even allows facial detection to automatically detect human form. The camera’s default S-Cinetone colour look offers the same soft, vivid tone as with Sony’s VENICE camera. Plus, is now Netflix approved!

– 15-stop HDR dynamic range

– Variable Electronic ND Filter

– XAVC-I, XAVC-Long, and MPEG HD formats

– (With future firmware update) HD up to 180 fps, 16-bit raw 4K/2K output up to 120 fps

– Fast Hybrid AF & Face Detection autofocus system

– Venice technology S-Cinetone

Sony PXW-FX9 XDCAM 6K Full-Frame Specifications

Downloadable Record Times coming soon…

Model

Sony PXW-FX9V

Sensor

35.7 x 18.8 mm (Full-Frame) back-illuminated CMOS Sensor

Lens Mount

E-Mount

Recording Format

XAVC-I 4:2:2 10-bit
XAVC-L 4:2:2 10-bit
MPEG HD4:2:2 10-bit
XAVC Proxy 4:2:0 10-bit

File Format

XAVC-I MXF
XAVC-L MXF
MPEG HD422 MXF
XAVC Proxy MXF

Resolution

XAVC-I UHD 3840x2160p
XAVC-I HD 1920x1080p
XAVC-I HD 1920x1080i
XAVC-L HD 3840x2160p
XAVC-L HD 1920x1080p
MPEG FHD 1920x1080i
MPEG HD 1920x1080p
MPEG HD 1920x1080i
XAVC Proxy 1920x1080p
XAVC Proxy
640x360p

Maximum Frame Rate (PAL)

XAVC-I UHD 50 fps
XAVC-I HD 100 fps
XAVC-I HD 50 fps
XAVC-L HD 50 fps
XAVC-L HD 100 fps
MPEG FHD 50 fps
MPEG HD 25 fps
MPEG HD 50 fps

Recording Media

2x XQD Card Slots

1x SDXC/Memory Stick Pro Duo Hybrid Card Slot

Audio Recording Format

XAVC: 4-cHANNEL 24-BIT 48 KhZ lpcm Audio

Proxy: 2-Channel AAC Audio

ISO

ISO Range 800-4000
Native ISO (Dual) 800/4000

Internal ND Filters

Variable electronic ND Filter from 1/4 to 1/128

Power

Sony BP-U series batteries

V-Lock (using Sony XDCA-Fx9 Extension Unit)

1 x Barrel (19.5 VDC) Power Connector Input

Video Connectors

1 x BNC (12G-SDI) Output
1 x BNC (3G-SDI) Output
1 x HDMI (HDMI 2.0) Output

Audio Connectors

2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 1/8″ / 3.5 mm Stereo Headphone Output

Other I/O

1 x BNC Genlock Data Input

1 x BNC Timecode Data Input/Output

1 x 2.5 mm LANC Control

1 x USB Micro-B USB 3.1 Gen 1 Data

1 x Barrel (19.5 VDC) Input

Weight

4.4 lb / 2 kg (body only)

Technical Assistance

Sony PXw-FX9 Instructional Manual (Menu Configuration and Hierarchy pg. 65)
