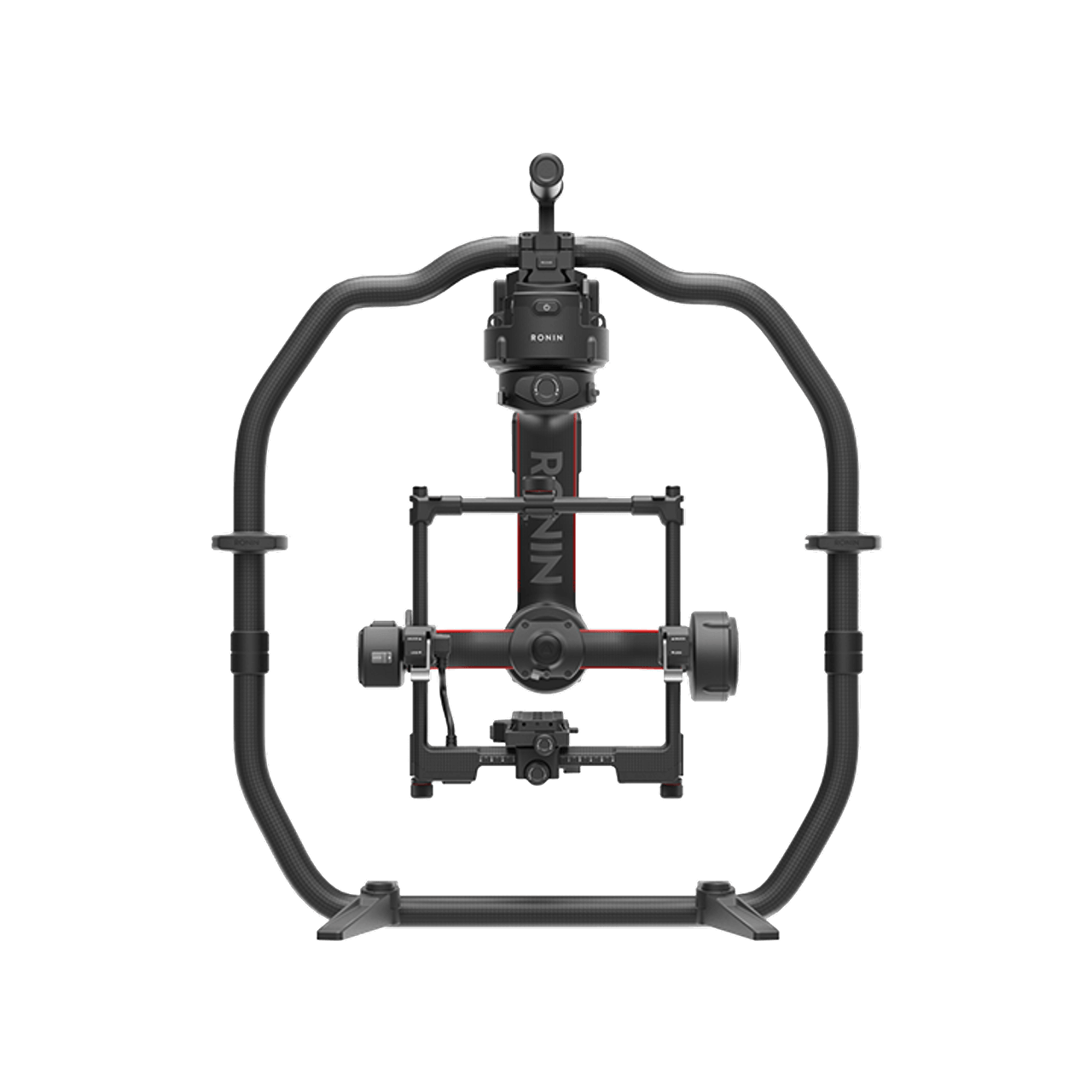

DJI Ronin 2
The DJI Ronin 2 is a professional 3-axis stabilization system built for high-end cinema productions, capable of handling payloads up to 13.6 kg (30 lbs). It is designed to be the central hub for a cinema rig, providing integrated power and data for cameras like the ARRI Alexa 35, Arri Alexa Mini LF, Sony Venice 1, Sony Venice 2, Sony Burano etc.
- Payload Capacity: Supports up to 13.6 kg (30 lbs)
- High-Torque Motors: Motors are up to eight times more powerful than previous versions, allowing for stable shots at speeds of over 120 km/h (75 mph).
- Integrated Display: Features a built-in 1,000-nit touchscreen for quick calibration and setting adjustments without needing a mobile device.
- Battery System: Uses dual hot-swappable batteries that are self-heating for cold weather (down to -20°C). They provide 2.5 to 8 hours of runtime depending on the camera being powered.
- Versatile Mounting: Can be used in handheld, underslung, upright, or briefcase modes, and easily transitions to drones, car mounts, or cable cams.
Load Capacity
13.6 kgs
Weight
5.5 kgs
Camera Requirements
| Max depth from centre of gravity on base plate | 245mm |
| Max height from top of base plate | 165mm |
| Max width | 180mm |
Maximum Controlled Rotational Speed
| Pan Axis Control | 400°/s |
| Tilt Axis Control | 360°/s |
| Roll Axis Control | 360°/s |
Controlled Rotational Range
| Pan Axis Control | 360° |
| Tilt Axis Control | +45° to -135° |
| Roll Axis Control | +45° to -45° |
Mechanical Endpoint Range
| Pan Axis Control | 360° |
| Tilt Axis Control | +135° to -135° |
| Roll Axis Control | +220° to -220° |
Operation Modes
Underslung Mode
Upright Mode
Briefcase Mode
Handheld, Car Mount, Aerial, Tripod & Steadicam Mode
