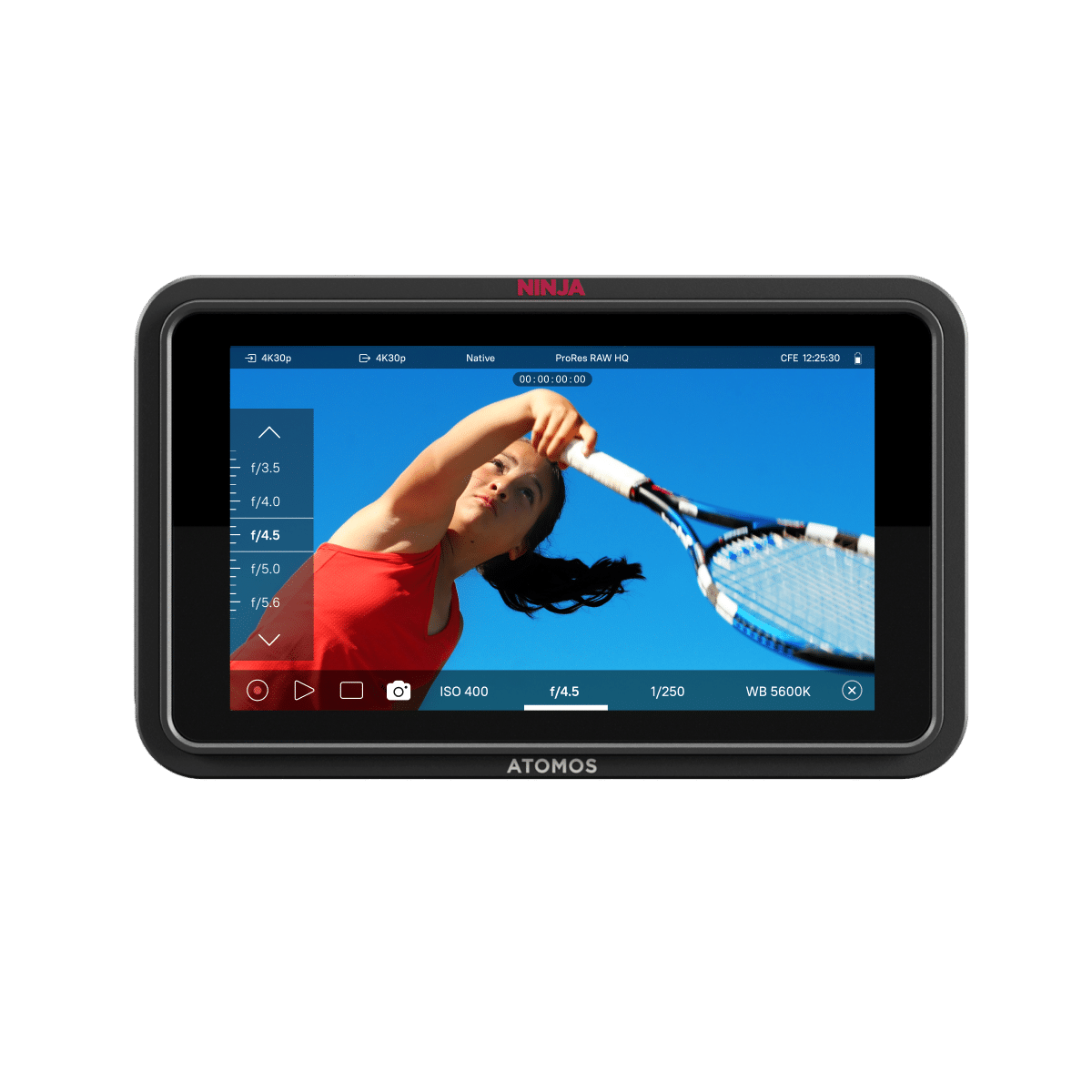

Atomos Ninja TX
The Atomos Ninja TX is a 5.2-inch 1500-nit HDR monitor-recorder designed specifically for professional camera-to-cloud (C2C) workflows. The Ninja TX features built-in Wi-Fi 6E and integrated wireless connectivity.
- Integrated Connectivity: Includes built-in Wi-Fi 6E and AirGlu technology for wireless timecode sync over RF or Bluetooth.
- Dual Inputs/Outputs: Equipped with both 12G-SDI and HDMI 2.0 ports, supporting cross-conversion and up to 8K30 ProRes RAW recording.
- Media Options: Features a CFexpress Type B card slot and dual USB-C ports for recording directly to external SSDs or power delivery.
- Camera Control: Supports touch-to-focus and adjustments for ISO, aperture, and shutter speed on compatible cameras from Sony, Canon, Fujifilm, Nikon, and Panasonic via USB-C
- Preloaded Codecs: Comes with Apple ProRes RAW, Avid DNx, H.265, and NDI 6 HX3 (TX & RX) licenses included.
- Compatible with the Fujinon Etrena 55 GFX for External RAW Recording.
Check out further details about the Atomos Ninja TX
I/O
Atomos Ninja TX I/O & Power Table
| Connection Type | Port / Interface | Quantity | Functionality Highlights |
|---|---|---|---|
| Video Input | HDMI 2.0 | 1 | Supports up to 8K30 RAW, 4K60, and 1080p120. |
| 12G-SDI (BNC) | 1 | Supports 4K60 and backwards compatibility with 3G/6G-SDI. | |
| Video Output | HDMI 2.0 | 1 | Loop-through and cross-conversion from SDI input. |
| 12G-SDI (BNC) | 1 | Loop-through and cross-conversion from HDMI input. | |
| Audio I/O | 3.5mm Analog In | 1 | 2-channel line/mic input for external audio. |
| 3.5mm Headphone Out | 1 | 2-channel monitoring for all embedded/analog audio. | |
| Embedded Audio | — | 8-ch HDMI / 12-ch SDI (24-bit). | |
| Data & Storage | CFexpress Type B | 1 | Slot for internal recording to high-speed media. |
| USB-C 3.0 | 2 | Shared for recording to SSDs, LUT uploads, and firmware. | |
| Power Input | Battery Plate | 1 | Built-in L-Series (NP-F) mount. |
| USB-C PD | 1 | Supports 30W PD input for operation/charging. | |
| DC Input (via Adapter) | 1 | 6.2V to 16.8V via optional battery eliminator. | |
| Wireless / Sync | RP-SMA Antennas | 3 | Wi-Fi 6E and AirGlu RF/Bluetooth sync. |
| Remote Control | 2.5mm LANC Jack | 1 | Wired camera control interface. |
Video Format
| Category | Interface / Feature | Details & Bit Depth |
|---|---|---|
| Video Input | 12G-SDI & HDMI 2.0 | RAW: 8K30 / 4K120 (12-bit). Video: 4K60 / 1080p120 (8/10-bit). |
| Recording Codecs | ProRes RAW | 12-bit (HQ & Standard) for maximum grading latitude. |
| Apple ProRes | 10-bit 4:2:2 (HQ, 422, LT). | |
| Avid DNxHR/HD | 10-bit 4:2:2 (HQX, HQ, SQ, LB). | |
| H.265 (HEVC) | 8/10-bit (4:2:0 & 4:2:2) with flexible bitrate options. | |
| NDI 6 / HX3 | 10-bit transmit (TX) and receive (RX) capabilities. | |
DIMENSIONS (WxHxD)
151 x 92 x 36 mm (5.9 x 3.6 x 1.4 in)
|
