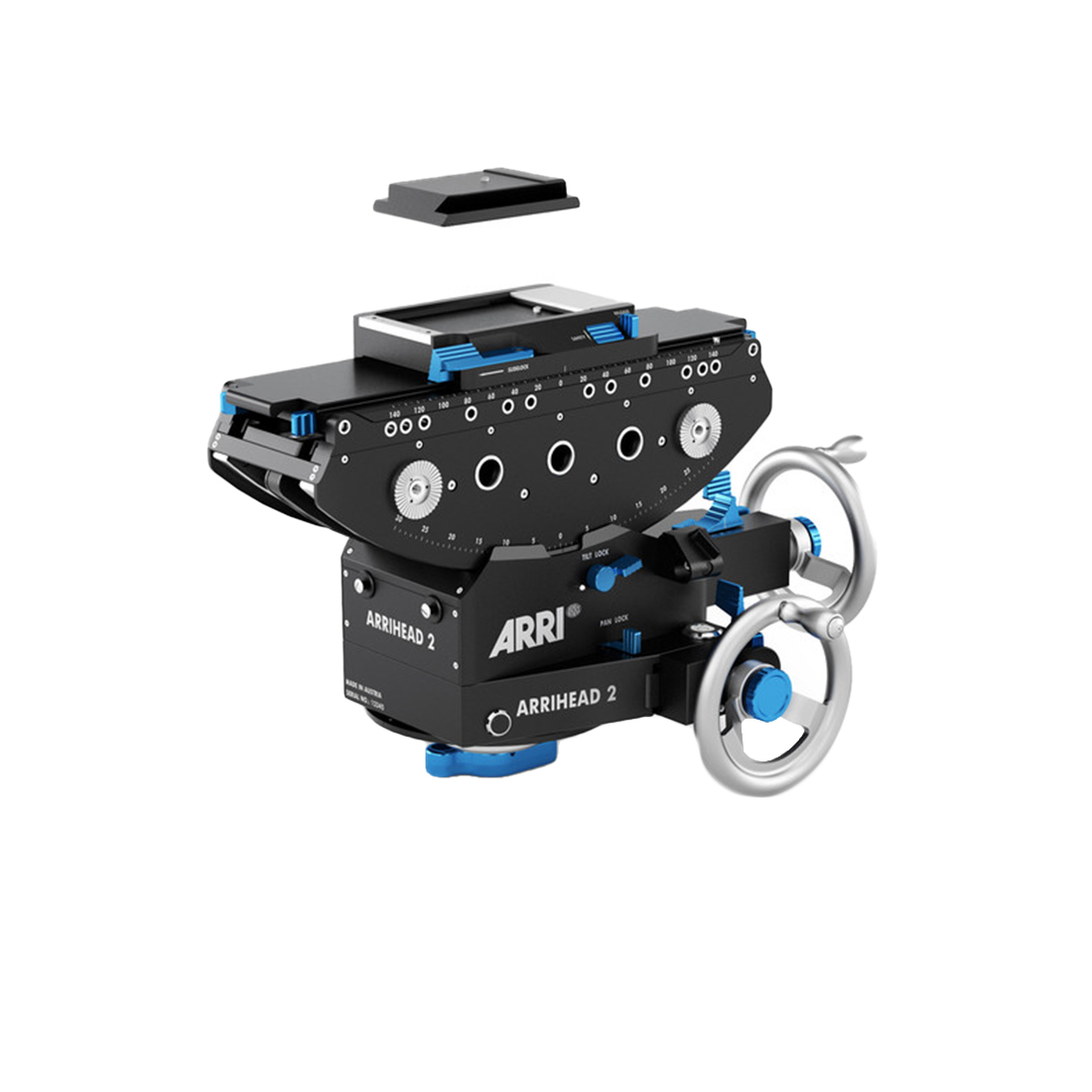

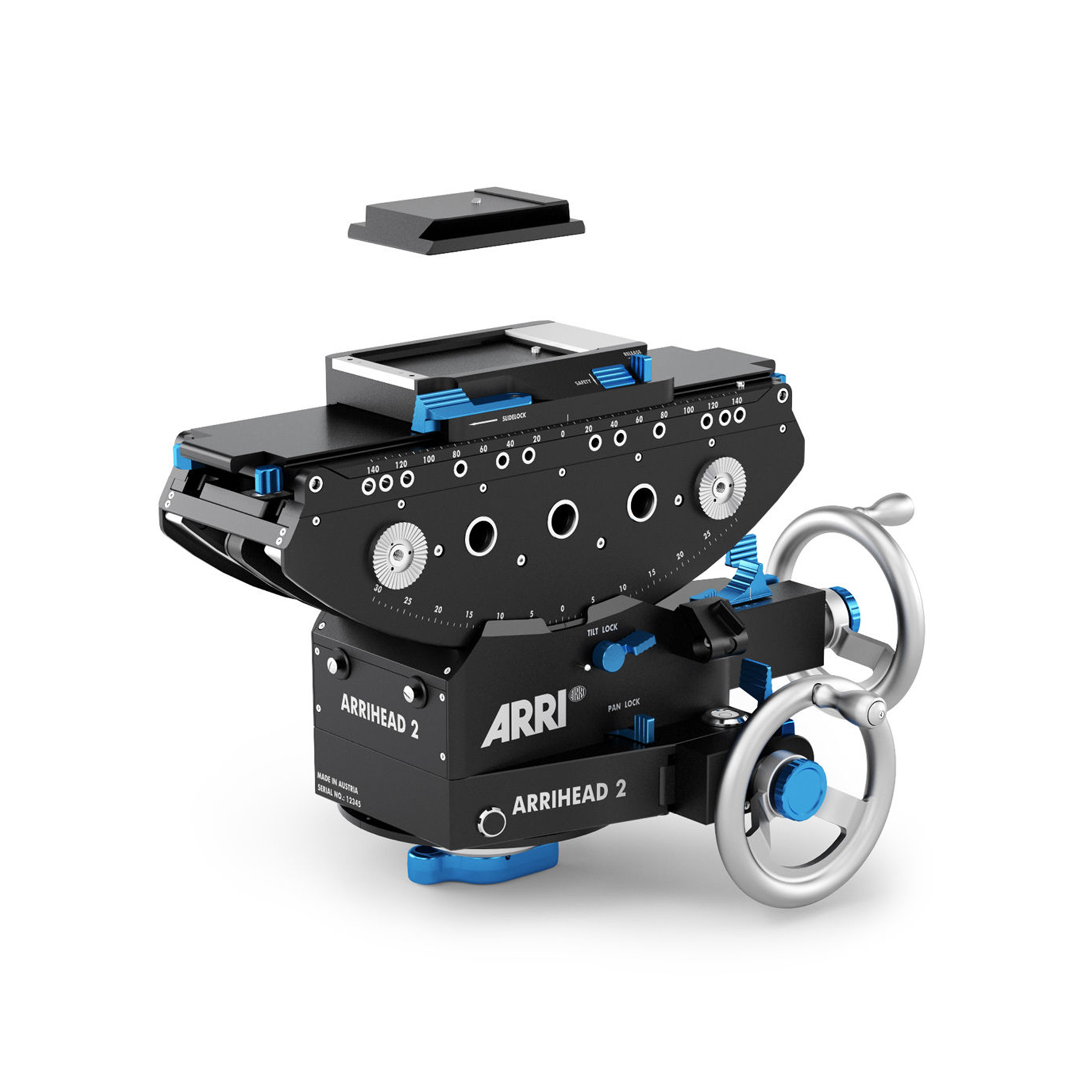

ARRIHEAD 2 Production Tripod Head
The ARRIHEAD 2 is a compact, robust geared head offering 3-speed precision movement and a 50 kg (110 lb) payload capacity. Lighter and shorter than the original, it features a centered tilt-axis, 360° pan, and ±90° tilt (with a wedge plate), making it ideal for precise, smooth, repeatable shots.
- Design: Compact, lightweight, 8cm shorter than the original ARRIHEAD.
- Capacity: Maximum load capacity of 50 kg (110 lb).
- Tilt/Pan: Tilt angles of +30 degrees without a wedge plate and +90 degrees with a wedge plate.
- Gears: Selectable 3-speed gears for both pan and tilt, plus a neutral setting.
- Reduction Gears: 1:5 ratio available for both pan and tilt movements.
- Mounting: Standard Mitchell base.
- Operation: Tilt drive via precision chain/pulleys.
Dimension
The ARRIHEAD 2 is a compact, Mitchell-mount geared head weighing roughly 15-20kg (33-44 lbs) and supporting up to 50 kg (110lbs).
- Height: 33 cm (13 in)
- Length: 56.6 cm (22.28in)
- Width: 34.3 cm (13.50in)
