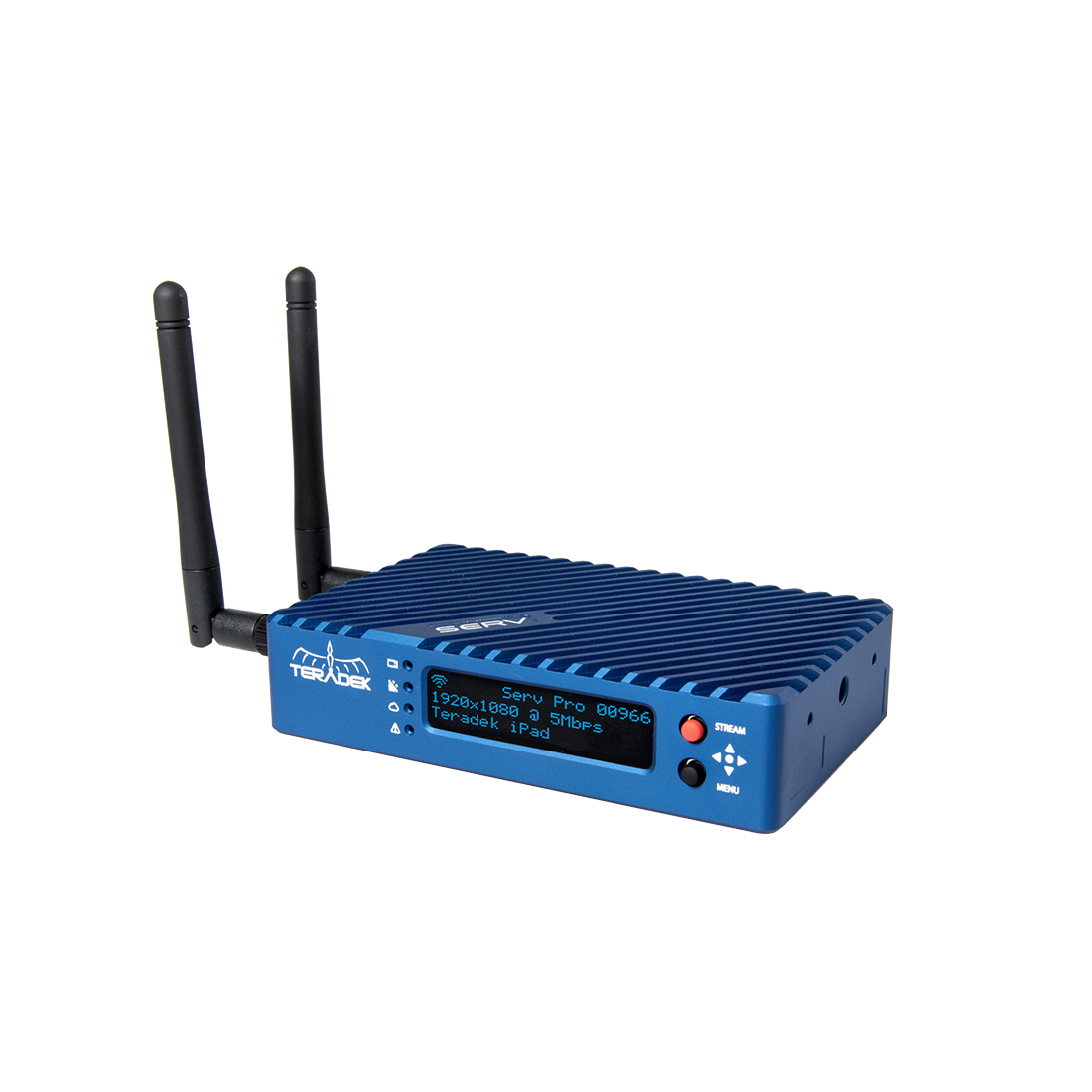

Teradek Serv Pro
The Teradek Serv Pro is a compact hardware streaming device designed for on-set video monitoring. It encodes video feeds from a camera and transmits them over Wi-Fi or Ethernet to up to 10 local iOS, Android, or macOS devices.
- Low Latency Monitoring: Streams HD video (up to 1080p60) with a minimal 2-frame delay.
- Connectivity: Features both 3G-SDI and HDMI inputs for compatibility with professional and consumer cameras.
- Dual-Band Wi-Fi: Operates on both 2.4GHz and 5GHz bands (802.11ac) to minimize interference.
- Multi-Camera Support: By using the free VUER app, users can monitor up to four simultaneous camera feeds on a single iPad.
- Remote Monitoring: Can be integrated with Teradek Core for off-set, cloud-based monitoring via an internet connection
I/O
| Category | Connection Type | Details |
|---|---|---|
| Video Input | 3G-SDI | 1x BNC (75 Ohm), supports up to 1080p60 |
| HDMI | 1x Type-A receptacle, supports up to 1080p60 | |
| Audio Input | Embedded | 2-channel audio over SDI/HDMI |
| Analog | 1x 3.5mm (1/8″) Mic/Line input with adjustable gain | |
| Power Input | DC Input | 6–28V DC via 2-pin locking connector |
| Consumption | ~8W (7W with Wi-Fi disabled) | |
| Network | Ethernet | 1x RJ45 (10/100/1000 BASE-T Gigabit) |
| Wireless | 2x RP-SMA female antenna ports (Dual-band 2.4/5GHz) | |
| Interface | Config | OLED display with joystick navigation & WebUI |
| Mechanical | 2x 1/4″-20 threaded mounting holes |
Dimensions
| 120.7 x 76.2 x 27.9 mm (4.75″ x 3.0″ x 1.1″) |
328.9 g (11.6 oz)
Video Format
| Resolution | Frame Rates (fps) | SDI Support | HDMI Support |
|---|---|---|---|
| 1080p | 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 | Yes | Yes |
| 1080i | 50, 59.94, 60 | Yes | Yes |
| 1080PsF | 23, 24, 25, 29, 30 | Yes | Yes |
| 720p | 50, 59.94, 60 | Yes | Yes |
| 576p | 50 | No | Yes |
| 576i | 50 (PAL) | Yes | Yes |
| 480p | 59.94 | No | Yes |
| 480i | 59.94 (NTSC) | Yes | Yes |
