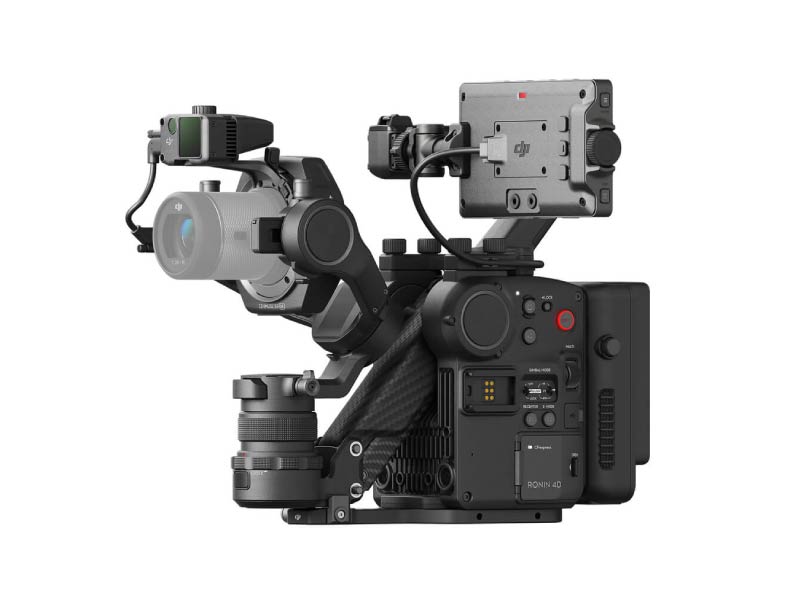

DJI Ronin 4D 6k

The DJI Ronin 4D 6K is an all-in-one cinema camera with a full-frame Zenmuse X9-6K sensor and an innovative 4-axis stabilization system, including vertical movement. It records up to 6K at 60fps and 4K at 120fps in ProRes, ProRes RAW, and H.264 formats. With over 14 stops of dynamic range and dual native ISOs of 800 and 5000, it performs well in diverse lighting.

Built for professionals, it features a modular carbon fiber body, 5.5″ touchscreen, and LiDAR autofocus. The CineCore 3.0 processor supports ACES workflows, with interchangeable lens mounts like DJI DL and Leica M. Weighing around 4.67 kg, it offers a compact, stabilized solution for high-end filmmaking.

Model

DJI Ronin 4D 6k

Sensor

DJI Zenmuse X9 Full Frame 6k Sensor

Lens Mount

E, M or DL (PL possible via DX mount + DX to PL adapter)

Recording Format

Apple ProRes RAW HQ/Apple ProRes RAW*
Apple ProRes 4444 XQ*
Apple ProRes 422 HQ/Apple ProRes 422 LT
H.264 (4:2:0 10-bit)

*via SSD module

Media

Internal Recording SSD or CF Express Type B
Setup USB

Audio Recording Format

LPCM 2-ch, 24-bit 48kHz

Exposure Index (EI)

EI Range EI 200-12800
Native EI DUAL 800/5000

Internal ND Filters

Clear
2 (0.3)
4 (0.6)
8 (0.9)
16 (1.2)
32 (1.5)
64 (1.8)
128 (2.1)
256 (2.4)
512 (2.7)

Batteries

DJI TB50 (97w)

Inputs

1 x 3.5mm TRS Stereo Input Jack
1 x USB3.1 Type-C Data Port
1 x 6-pin 1B DC-IN (DC 12-30 V)
1 x HDMI Type-A Video Output Port

Outputs

1x BNC (6G-SDI Out)
2 x Stereo 3-Pin XLR Audio
1 x 3.5mm Stereo Output Jack
1 x BNC Timecode

Weight

Approx. 4.7 kg (after installing all modules in the combo, excluding lens)
