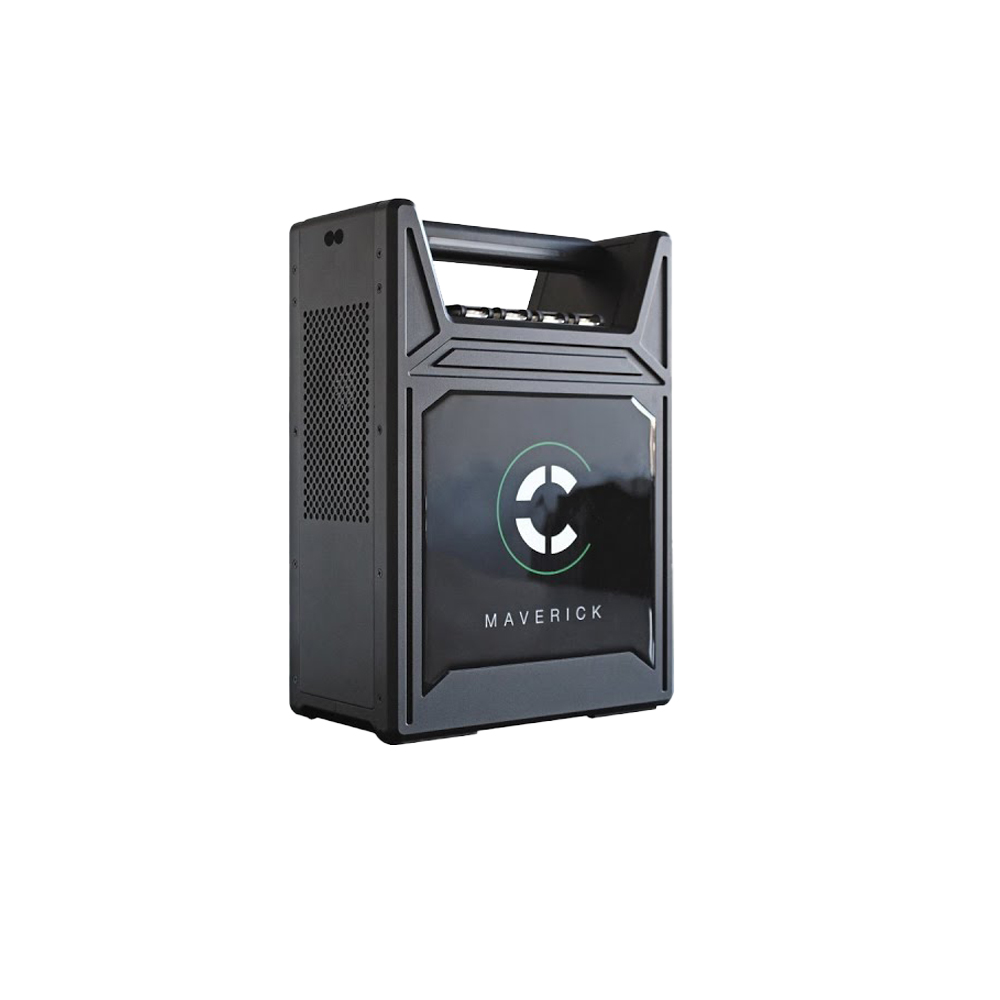

Core SWX Maverick Flight Safe Block Battery
The Core SWX Maverick (MV6) is a 605Wh high-capacity block battery designed as a mobile power station for professional cinema and lighting applications. Its Nickel Metal Hydride (NiMH) chemistry makes it flight-safe, allowing it to be checked as luggage on aircraft unlike high-capacity lithium-ion batteries.
- Capacity: 605Wh (14.4V, 42.0Ah) with a max rating of 639Wh.
- Max Load: Supports up to a 40A total draw, sustaining 20A on both 14V and 28V outlets simultaneously.
- Charging: Features a built-in charger that reaches full power in approximately 5 hours via a standard IEC AC input (110–240V).
- Build: Rugged all-aluminum modular design with water resistance up to 190mm (7.5 inches).
- Weight: Approximately 12.8 kg (28.3 lbs).
Battery Chemistry
NiMH – Flight Safe!
Battery Capacity
605 Wh
Output Voltage
2 x XLR 4-Pin at 14 V (12 to 17 VDC)
2 x XLR 3-Pin at 28 V (Regulated)
Output Ports
2 x D-Tap (10 A, 14.4 V Unregulated)
1 x USB Type-A (5 V, 3 A)
2 x XLR 4-Pin Female
2 x XLR 3-Pin Female
Charging Time
5 Hours +
Dimensions
9.6″ x 13.7″ x 5.3″ / 24.3 x 34.8 x 13.5 cm
Weight
35.375 lb / 16.1 kg
