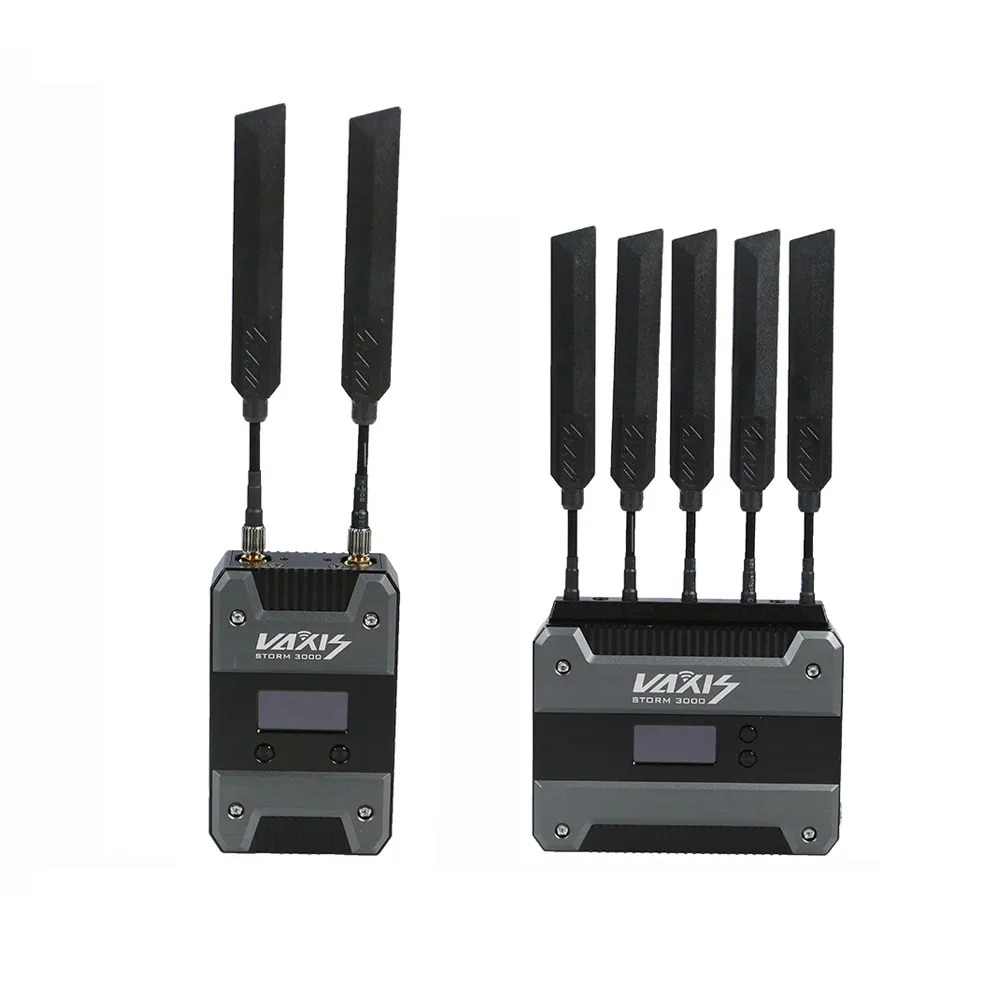

Vaxis Storm 3000 3G-SDI & HDMI Wireless
The Vaxis Storm 3000 is a wireless video transmission system designed for high-end film and broadcast productions, offering uncompressed 1080p60 video with zero latency (<1ms) over a range of up to 1,000 metres. It is highly regarded for its robust signal stability in complex environments and its ability to multicast to an unlimited number of receivers.
- Performance: Supports uncompressed video up to 1080p60 with less than 1ms latency.
- Range: Offers a line-of-sight range of 3,000 feet (approx. 1,000m).
- Connectivity:
- Transmitter (TX): 1x 3G-SDI input, 1x HDMI input, and 1x 3G-SDI loop output.
- Receiver (RX): 2x 3G-SDI outputs and 1x HDMI output.
- Conversion: Features HDMI to SDI cross-conversion on the transmitter.
- Power Options: Both units feature integrated battery plates (V-mount or Gold mount) and 2-pin LEMO inputs for continuous DC power (6-36V).
- Advanced Support: Includes support for timecode, metadata, and ARRI Alexa Mini instant playback.
- Durability: Built with a robust all-metal housing and smart active cooling for extended use in hot environments.
I/O
| Feature | Transmitter (TX) | Receiver (RX) |
|---|---|---|
| Video Input | 1x 3G-SDI (BNC); 1x HDMI 1.3 (Type-A) | — |
| Video Output | 1x 3G-SDI Loop-out (BNC) | 2x 3G-SDI (BNC); 1x HDMI 1.3 (Type-A) |
| Audio I/O | 4-channel 24-bit/48kHz embedded | 4-channel 24-bit/48kHz embedded |
| DC Power In | 1x 2-Pin LEMO (6V – 36V) | 1x 2-Pin LEMO (6V – 36V) |
| Battery Plate | Dual V-Mount Pass-through* | Integrated V-Mount or Gold Mount |
| Power Draw | < 6.5 Watts | < 6 Watts |
| Antenna I/O | 2x RP-SMA Male | 5x RP-SMA Male |
Dimensions
| 113 x 69.5 x 27 mm/ 4.45″ x 2.74″ x 1.06″ | 268 g (9.45 oz) |
Video Format
| 4K (Input Only) | Up to 4K (Cross-converted to 1080p) | No | Yes* |
| 1080p | 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 | Yes | Yes |
| 1080PsF | 23.98, 24, 25, 29.97, 30 | Yes | Yes |
| 1080i | 50, 59.94, 60 | Yes | Yes |
| 720p | 50, 59.94, 60 | Yes | Yes |
| 576p | 60 | Yes | Yes |
| 576i / 480i | Standard Definition | No | Yes |
