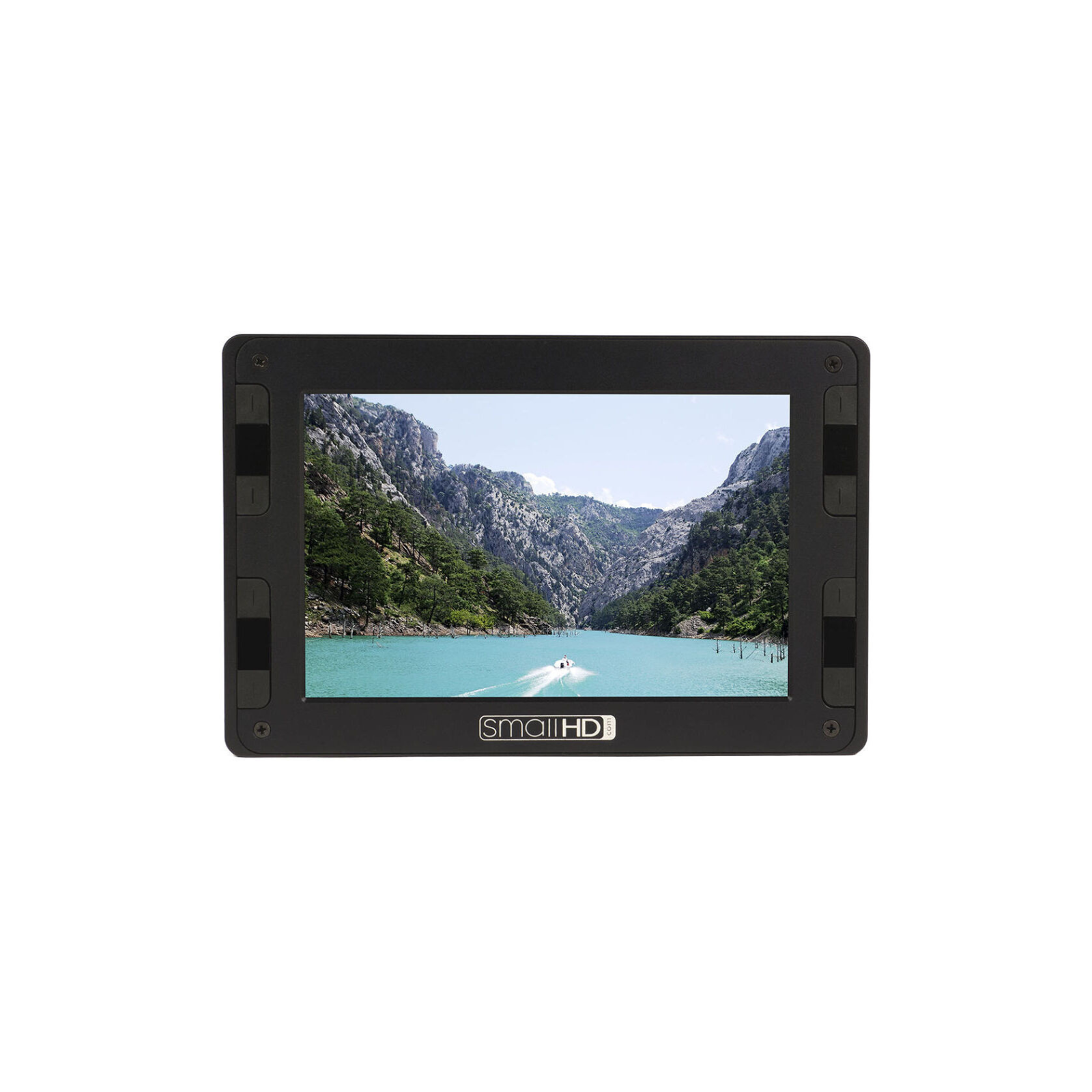

SmallHD DP7 7″ Onboard Monitor
The SmallHD DP7-Pro LCD offers highly flexible 3D LUT support and an extensive set of monitoring tools, including scopes, and is designed with a multi hot key interface that allows for an efficient workflow. It features a 7″ IPS LCD display with a 1280 x 800 HD resolution, 8-bit color depth, and 800:1 contrast ratio. Connections include HD-SDI and HDMI input and output, as well as a Hirose input that supports an optional SmallHD Component/Composite breakout cable.
- 7″ IPS LCD
- 1280 x 800 HD resolution
- 8-bit color depth
- 800:1 contrast ratio
- HD-SDI and HDMI input and output (with signal conversion)
I/O
| Connection Type | Specification | Details |
|---|---|---|
| Video Inputs | 2 x SDI (BNC) | 1x HD/SD-SDI; 2nd SDI port on some models doubles as input/output |
| 1 x HDMI | Full-size HDMI with locking mechanism | |
| 1 x Composite | Via 4-pin Hirose breakout cable to BNC | |
| Video Outputs | 1 x SDI (BNC) | Supports pass-through and cross-converted signals |
| 1 x HDMI | Supports pass-through and cross-converted signals | |
| Power Inputs | Locking Hirose | 4-pin connector; accepts 10–24V DC |
| Battery Input | 4-pin Molex connector for various battery plates (V-Mount, Gold Mount) | |
| Audio | 1 x Stereo Line In | 4-pin Hirose connector |
| 1 x Headphone Out | 1/8” (3.5mm) mini jack | |
| Built-in Speakers | 2 x speakers located on the unit | |
| Data & Storage | 1 x SD Card Slot | Used for 3D LUTs, firmware, and saving configurations |
Dimensions
20 x 13 x 2.3 cm (7.9 x 5.1 x 0.9 inches) 540g (1.2 lbs)
Video Formats
| Resolution | Frame Rates | Interface Support |
|---|---|---|
| 1080p | 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 | SDI & HDMI |
| 1080i | 50, 59.94, 60 | SDI & HDMI |
| 1080PsF | 23.98, 24, 25, 29.97, 30 | SDI & HDMI |
| 720p | 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 | SDI & HDMI |
| 576p / 480p | 50, 59.94, 60 | HDMI Only |
| 576i (PAL) | 50 | SDI & HDMI |
| 480i (NTSC) | 59.94, 60 | SDI & HDMI |
