Aputure CF12 Fresnel For 1200x

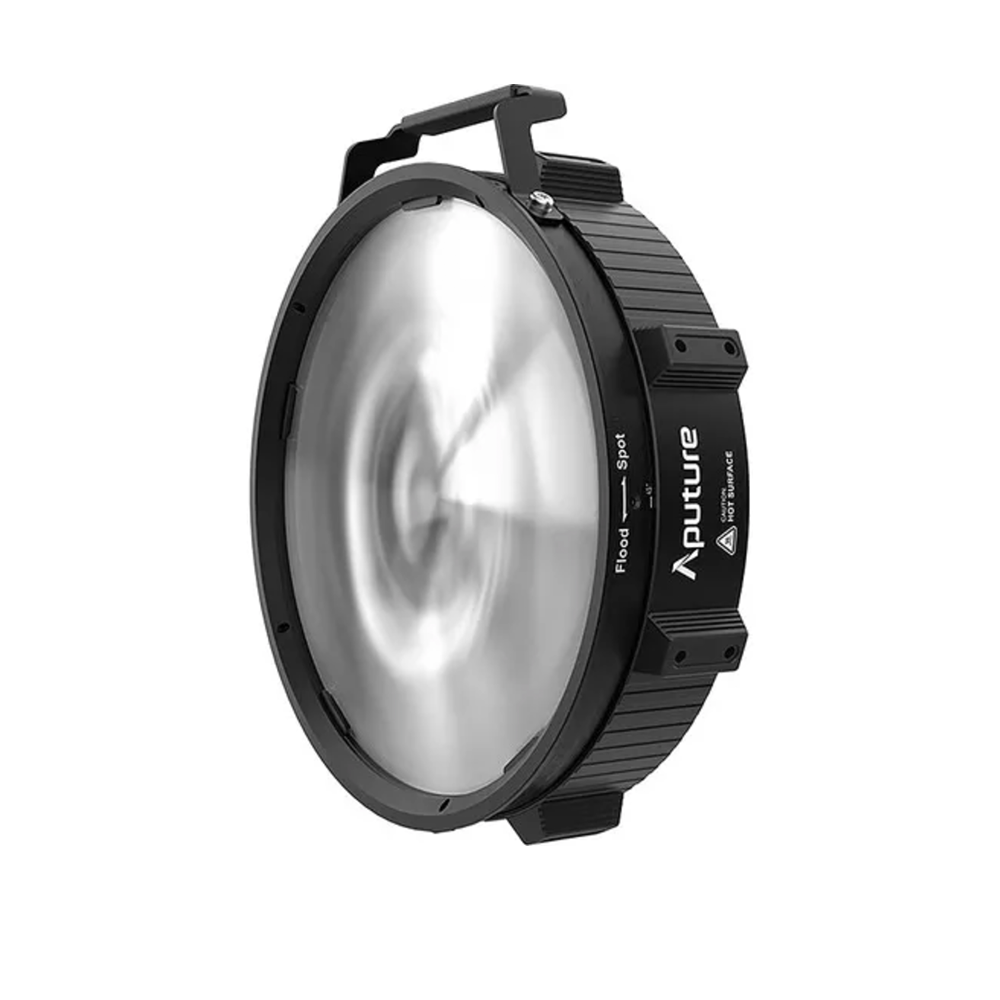

The CF12 Fresnel is a compact fresnel with a 12 inch diameter lens and Bowens Mount, optimized for use with the STORM 1000c and 1200x.
The CF12 Fresnel intensifies the STORM 1000c output by up to 9 times (5600K, full intensity at 1 meter equals 58,500 lux) and the STORM 1200x output by up to 9.9 times (5600K, full intensity at 1 meter equals 84,400 lux). The optics provide an even output at all beam angles, with a smooth center-to-edge falloff.
The new CF12 Fresnel offers a beam range of 15º to 45º while maintaining a compact profile. It uses a dual-expanding focusing system with multiple lens elements to drastically reduce its size and weight without compromising optical performance. Its compact design is perfect for small, well-balanced setups on the STORM 1000c and STORM 1200x. The CF12 Fresnel is also compatible with the LS 1200d Pro, LS 600c Pro, and LS 600c Pro II.
Photometrics
105°:
2057 fc / 22,150 Lux at 3.3′ / 1 m
241 fc / 2600 Lux at 9.8′ / 3 m
94 fc / 1020 Lux at 16.4′ / 5 m
55°:
9150 fc / 98,500 Lux at 3.3′ / 1 m (with Reflector)
789 fc / 8500 Lux at 9.8′ / 3 m (with Reflector)
278 fc / 3000 Lux at 16.4′ / 5 m (with Reflector)
Color Temperature
5600K +/- 200K (with 112K Shift over Lifetime)
Color Accuracy Standard
CRI 96
TLCI 96
CQS 94
SSI 72
TM-30 Rf 92
TM-30 Rg 102
Dimming
Yes, Includes Hardware
0 to 100% (Continuous)
Beam Angle
105° Unmodified
55° with Included Reflector
Front Accessory Mount
Bowens S
Power Consumption
720 W
