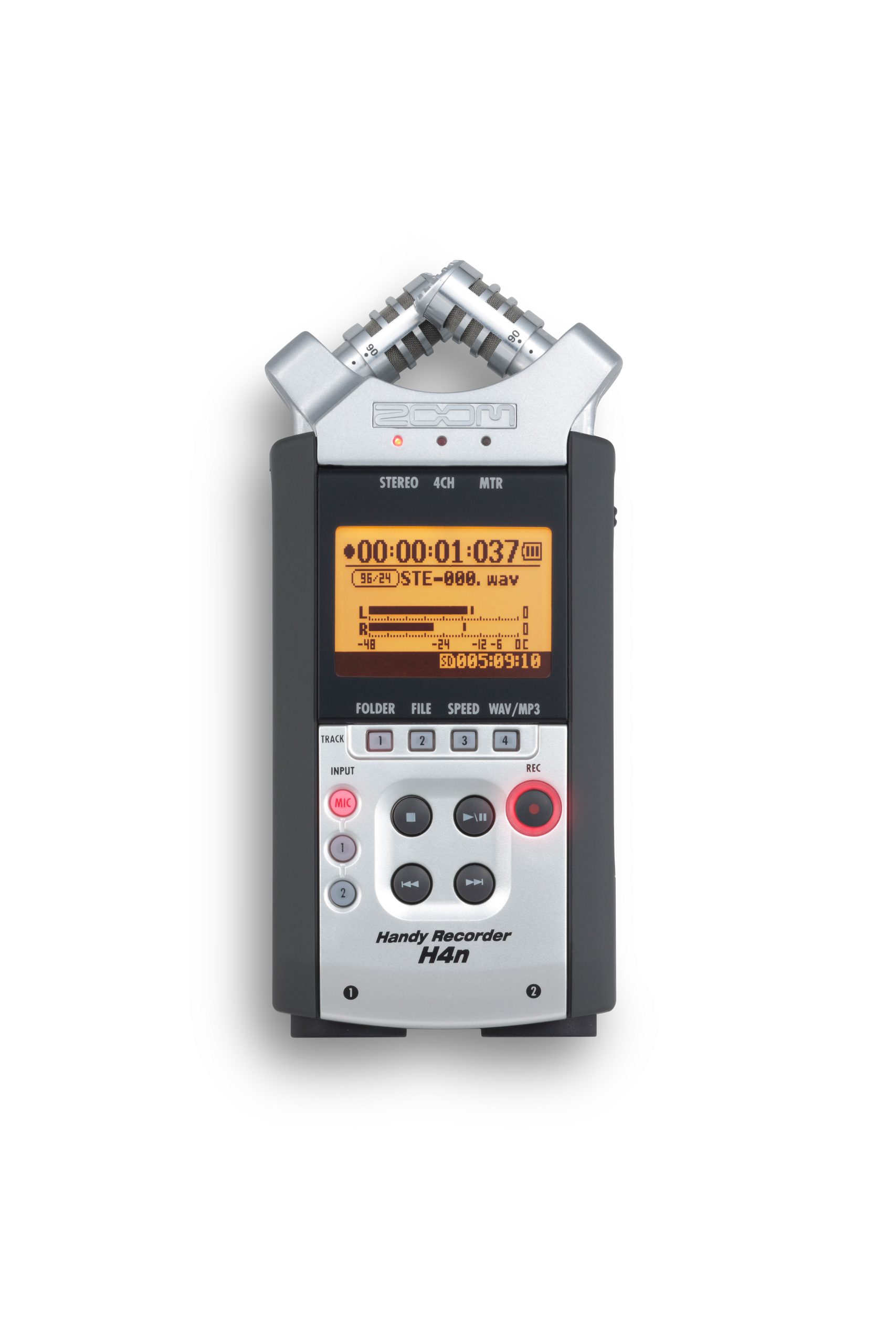

Zoom H4n Audio Recorder
The Zoom H4n Pro is a versatile, portable 4-track digital audio recorder favored for its built-in adjustable (90°/120°) X/Y stereo microphones and two XLR/TRS combo inputs with phantom power. It records high-quality audio (up to 24-bit/96kHz) to SD cards and can act as a 2-channel USB audio interface.
- 4-Channel Recording: Simultaneously record using the built-in X/Y mics and external microphones.
- Inputs/Outputs: Two XLR/TRS combo inputs with +24V or +48V phantom power, plus a 3.5mm mic input.
- Versatile Audio Modes: Includes Stereo mode, 4CH mode, and MTR (Multitrack) mode for overdubbing.
- Audio Quality: Supports BWF-compliant WAV (up to 24-bit/96kHz) and MP3 formats.
Audio & Recording Capabilities
- Built-in Microphones: Features integrated X/Y stereo microphones that are adjustable between 90° (focused) and 120° (wide) patterns.
- High-Resolution Audio: Supports recording in BWF-compliant WAV (up to 24-bit/96 kHz) and various MP3 formats.
- SPL Handling: Capable of recording extremely loud sound sources, up to 140 dB SPL, without distortion.
- Low Noise Floor: Equipped with high-performance, low-noise preamps (–120 dBu EIN), similar to those found in higher-end models like the H6.
I/O
- Main Inputs: Two locking XLR/TRS combo jacks that accept mic, line, or instrument-level signals.
- Phantom Power: Provides switchable +24V or +48V phantom power for the main inputs.
- Secondary Inputs: Includes a stereo 1/8″ Mic In jack with 2.5V plug-in power for lavalier microphones.
- Outputs: A dedicated 1/8″ stereo Line/Phone Out with volume control for monitoring or connecting to a DSLR.
- USB Interface: Functions as a 2-in/2-out USB audio interface for Mac or PC.
