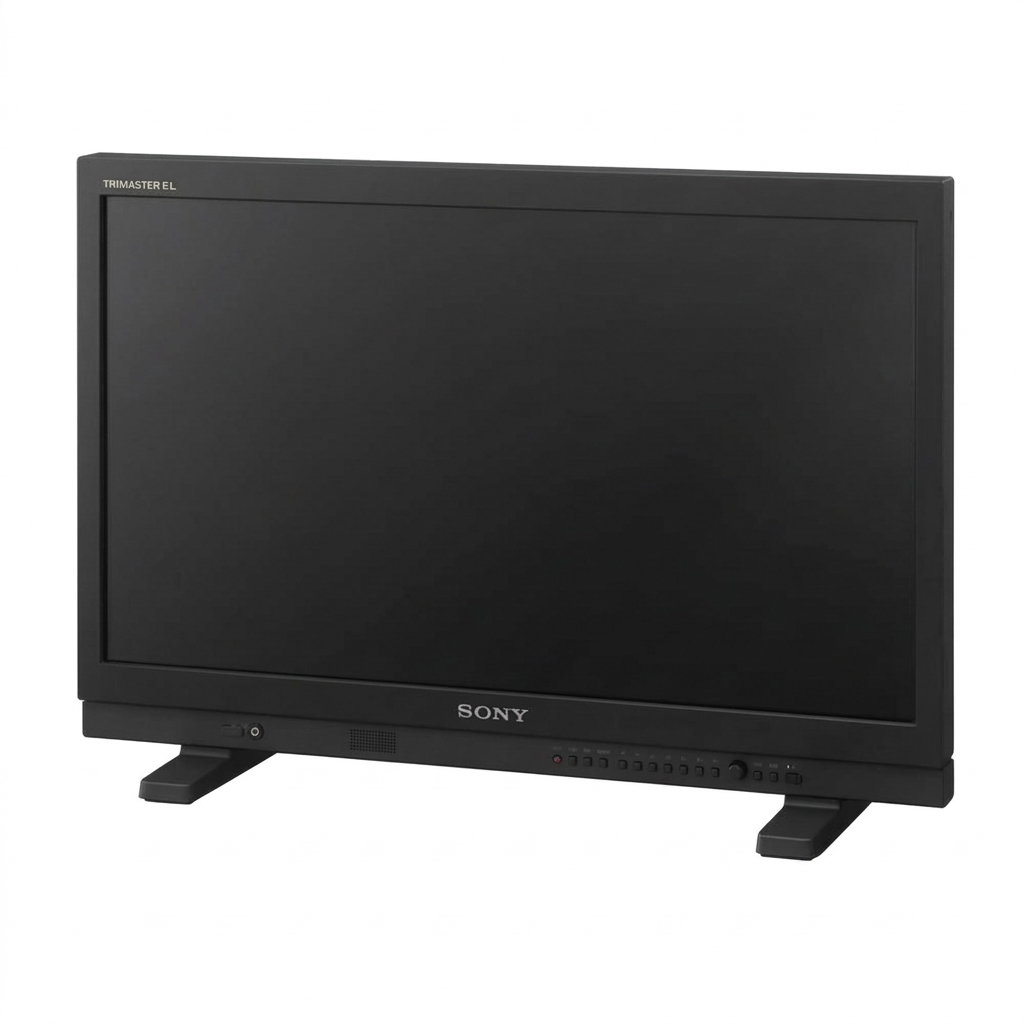

Sony PVM-A250 25″ OLED Monitor
The Sony PVM-A250 25″ TRIMASTER EL™ OLED Monitor is a professional-grade, Full HD (1920 x 1080) display designed for critical video production, studio work, and field monitoring.
- Panel Type: 24.5-inch TRIMASTER EL™ OLED with a 10-bit RGB driver.
- Contrast & Blacks: Features the ability to turn each pixel completely off, achieving true black reproduction and superior contrast compared to traditional LCDs.
- Wide Viewing Angle: Offers an industry-leading 89° viewing angle in all directions (horizontal/vertical) with minimal color shift, ideal for group monitoring.
- Color Accuracy: Utilises Sony’s “Super Top Emission” technology to maintain a wide color gamut across the entire luminance range.
- Response Speed: Microsecond-level (μs) gray-to-gray switching eliminates motion blur and ghosting in fast-moving scenes.
I/O
|
Feature
|
Connection / Specification |
|---|---|
| SDI Input | 2 x BNC (3G/HD/SD-SDI) |
| SDI Output | 2 x BNC (Loop-through) |
| HDMI Input | 1 x HDMI (Type A), HDCP compliant |
| Composite I/O | 1 x BNC Input / 1 x BNC Loop-through |
| Audio Input | 1 x 3.5mm Stereo Mini Jack |
| Audio Output | 1 x 3.5mm Headphone (Front) / 1 x 3.5mm Monitor (Rear) |
| Internal Speaker | 1.0 W Mono |
| AC Power | 100 V to 240 V, 50/60 Hz (IEC C13) |
| Power Consumption | Approx. 115 W (Maximum) / 80 W (Average) |
| Remote Control | 1 x RJ-45 (Parallel) / 1 x RJ-45 (Serial LAN) |
| DC Output | 1 x USB 2.0 (5 V DC power supply) |
Dimensions
58.1 x 38.66 x 6.55 cm (22.88 x 15.25 x 2.63 inches)
6.1 kg (13.45 lbs).
Video Format
| Signal Category | Resolutions | Frame Rates |
|---|---|---|
| High Definition (SDI/HDMI) | 1920 x 1080p | 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 |
| 1920 x 1080i | 60, 59.94, 50 | |
| 1920 x 1080PsF | 30, 29.97, 25, 24, 23.98 | |
| 1280 x 720p | 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 | |
| 2K Digital Cinema (SDI Only) | 2048 x 1080p | 60, 59.94, 50, 48, 47.95, 30, 29.97, 25, 24, 23.98 |
| 2048 x 1080PsF | 30, 29.97, 25, 24, 23.98 | |
| Standard Definition | 720 x 480 (480i/p) | 60, 59.94 |
| 720 x 576 (576i/p) | 50 | |
| Computer (HDMI/DVI) | 640 x 480 to 1680 x 1050 | Various (e.g., 1280×1024, 1360×768) |
