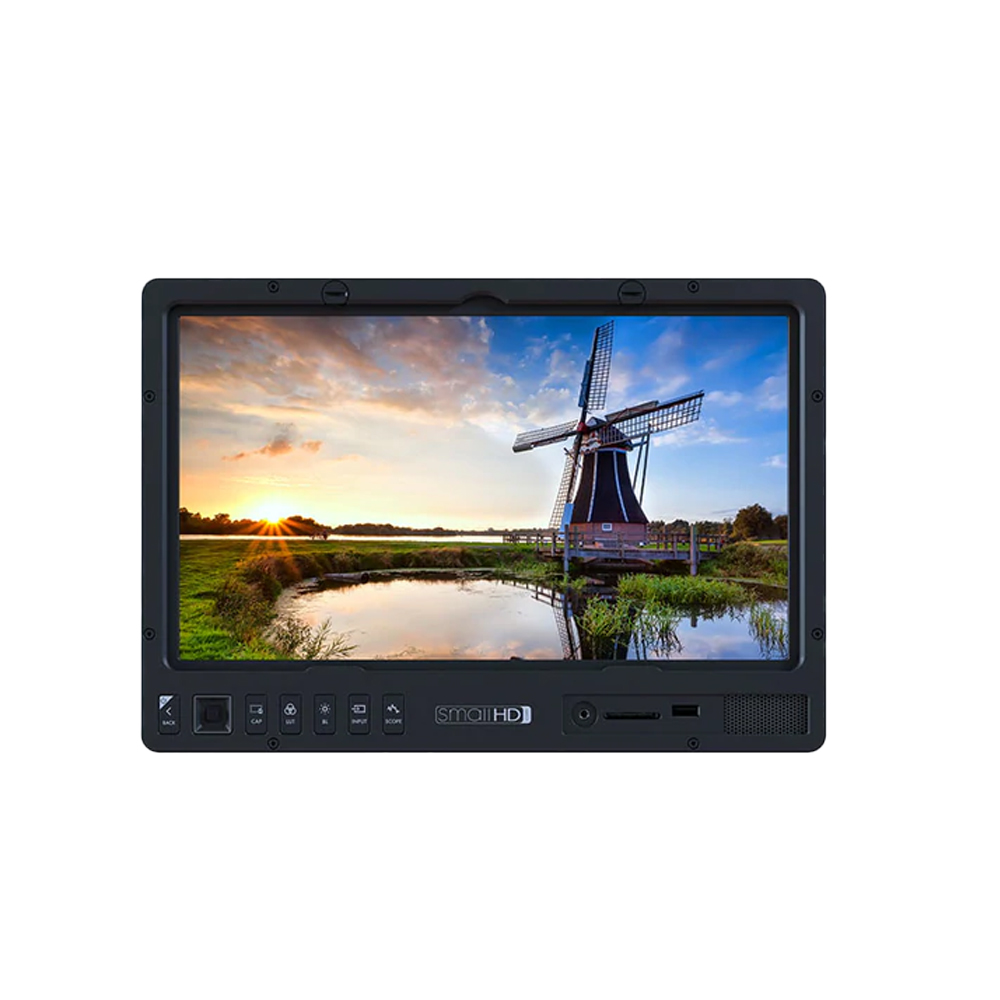

SmallHD 1303 13″ HDR Monitor

The SmallHD 1303 HDR is a 13-inch Full HD production monitor. It is widely used due to its 1500-nit daylight-viewable screen and rugged, portable design.

Display: 13-inch IPS LCD with a 1920×1080 resolution and 170 PPI pixel density.
Brightness: 1500 nits, making it approximately three times brighter than standard production monitors for outdoor visibility.
Color Performance: 10-bit Color Intelligence engine with 100% Rec.709 color gamut and 1140:1 contrast ratio.
Inputs/Outputs: Dual 3G-SDI inputs/outputs and one HDMI input/output with built-in cross-conversion
Build: Full anodised aluminium chassis weighing approximately 3.63kg (8 lbs).

Learn more about the SmallHD 1303.

Add to kit

I/O

Category	Connection Type	Details
Video Input	SDI	2x 3G-SDI Inputs (supports up to 1080p60)
	HDMI	1x HDMI Input
Video Output	SDI	2x 3G-SDI Outputs (loop-through/processed)
	HDMI	1x HDMI Output
Audio	Input	Embedded audio via SDI and HDMI (up to 8 channels)
	Output	1x 3.5mm Headphone Jack (front); Front-facing speakers
Data & Control	USB	1x Front USB 2.0; 2x Rear USB 2.0 (for power/LUTs)
	SD Card	1x SD Card Slot (for firmware and 3D LUTs)
Power Input	DC In	1x 4-pin XLR (12V–34V DC)
	AC In	110V–240V AC via included power “brick”
Power Output	Accessory Out	1x 2-pin LEMO (12V DC @ 4A max)
Consumption	Usage Range	25W (min) to 39W (max)

Dimensions

33.0 × 22.8 × 7.3 cm / 13 x 9 x 2.8 in

3.63 kg (8 lbs)

Video Format

esolution	Input Type	Supported Frame Rates (Hz)	Color Bit Depth
1080p	3G-SDI	60, 59.94, 50, 30, 29.97, 25, 24, 23.98	10-bit YCC 4:2:2
	HDMI	60, 59.94, 50, 30, 29.97, 25, 24, 23.98	8/10/12-bit RGB/YCC
1080i	3G-SDI / HDMI	120, 119.88, 100 (High-Speed); 60, 59.94, 50	10-bit (SDI) / 8-bit (HDMI)
1080psF	3G-SDI	30, 29.97, 25, 24, 23.98	10-bit YCC 4:2:2
720p	3G-SDI / HDMI	120, 119.88, 100, 60, 59.94, 50, 30, 29.97, 25, 24, 23.98	10-bit (SDI) / 8-bit (HDMI)
576p / 480p	HDMI	120, 119.88, 100, 60, 59.94, 50	8-bit RGB/YCC
576i / 480i	3G-SDI	59.94 (NTSC), 50 (PAL)	10-bit YCC 4:2:2
