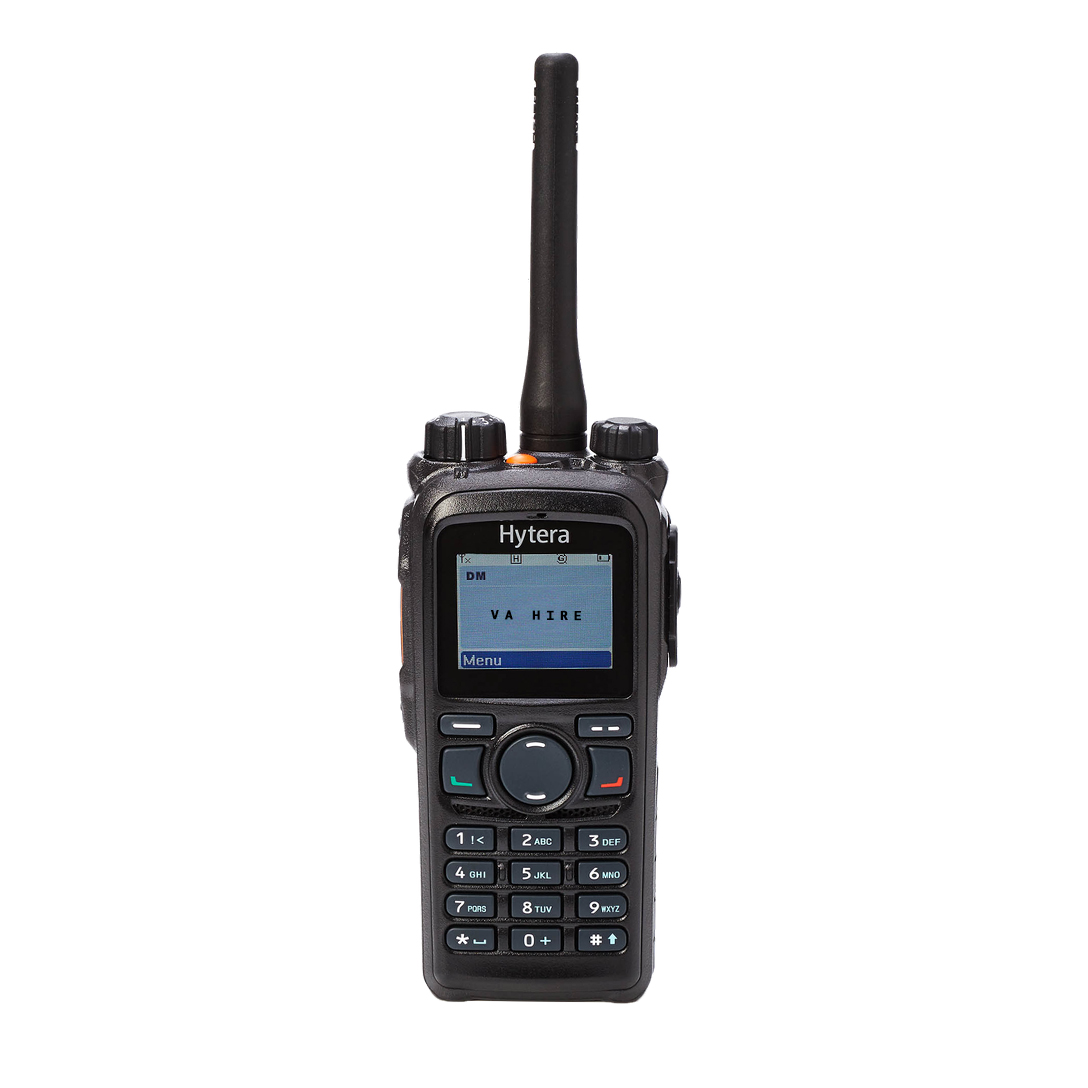

Hytera PD785G Radio
The Hytera PD785G is a premium, rugged digital (DMR) and analog handheld two-way radio featuring a full keypad, LCD display, and GPS, designed for high-duty environments. It offers superior audio, long battery life, and advanced encryption (ARC4/AES).
- GPS & Safety: Unlike the standard PD785, the “G” variant includes a built-in GPS module for location tracking and emergency messaging. It also supports “Man Down” and “Lone Worker” safety features.
- Dual Mode Connectivity: Operates in both analogue FM and digital DMR (Tier II & III) modes, allowing for a smooth transition from legacy systems.
- Rugged Design: Built to withstand harsh environments with an IP67 rating (dust-tight and submersible in 1m of water for 30 minutes) and MIL-STD-810 C/D/E/F/G compliance for shock and vibration resistance.
- Channel Capacity: Supports up to 1024 channels across 64 zones.
- Audio Quality: Uses narrowband codec and digital error-correction technologies to provide clear audio in noisy environments.
- Frequency Bands: Available in specific single-band versions for VHF (136–174 MHz) or UHF (typically 400–470 MHz
General
| Frequency range | VHF: 66 – 88 MHz / 136 – 174 MHz UHF: 400 – 470 MHz |
| Supported operating modes | DMR Tier II (ETSI TS 102 361-1/2/3) Simulcast XPT Digital Trunking DMR Tier III (ETSI TS 102 361-1/2/3/4) Analog, MPT 1327 |
| Number of Channels | 1024 |
| Number of zones | 64 (with up to 16 channels each) |
| Channel spacing | 12.5 / 20 / 25 kHz (analog) 12.5 kHz (digital) |
| Operating voltage | 7.4 V (nominal) |
| Standard battery | 2000 mAh (lithium-ion battery) |
| Battery service life, analog | VHF: approx. 11 hours / 10 hours (GPS mode) UHF: approx. 13.5 hours / 12 hours (GPS mode) |
| Battery service life, digital | VHF: approx. 13.5 hours / 12 hours (GPS mode) UHF: approx. 15.5 hours / 14 hours (GPS mode) |
| Frequency stability | ±1.5 ppm |
| Antenna impedance | Antenna impedance |
| Dimensions (without antenna) | 125 x 55 x 37 mm |
| Weight (w/ antenna & battery) | 355 g |
| LCD display | 160 × 128 pixels, 65,536 colours, 4.57 cm, 4 lines |
| Programmable keys | 5 + numerical keys |
Transmitter
| Transmitting Power | VHF: 1 / 5 W
UHF: 1 / 4 W |
| Modulation | 11 K0F3E at 12.5 kHz 14 K0F3E at 20 kHz 16 K0F3E at 25 kHz |
| 4FSK digital modulation | 12.5 kHz (data only): 7K60FXD 12.5 kHz (data and voice): 7K60FXW |
| Interfering signals & harmonics | -36 dBm (< 1 GHz) -30 dBm(> 1 GHz) |
| Modulation limiting | ±2.5 kHz at 12.5 kHz ±4.0 kHz at 20 kHz ±5.0 kHz at 25 kHz |
| Noise cancellation | 40 dB at 12.5 kHz 43 dB at 20 kHz 45 dB at 25 kHz |
| Adjacent channel selectivity | 60 dB at 12.5 kHz 70 dB at 20/25 kHz |
| Audio sensitivity | +1 dB to -3 dB |
| Nominal audio distortion | ≤ 3 % |
| Digital vocoder type | AMBE+2™ |
Receiver
| Sensitivity (analog) | 0.3 μV (12 dB SINAD) 0.22 μV (typical) (12 dB SINAD) 0.4 μV (20 dB SINAD) |
| Sensitivity (digital) | 0.3 μV / BER 5 % |
| Adjacent channel selectivity | TIA-603: 60 dB at 12.5 kHz / 70 dB at 20 and 25 kHz ETSI: 60 dB at 12.5 kHz / 70 dB at 20 and 25 kHz |
| Intermodulation | TIA-603: 70 dB at 12.5/20/25 kHz ETSI: 65 dB at 12.5/20/25 kHz |
| Spurious response rejection | TIA-603: 70 dB at 12.5/20/25 kHz ETSI: 70 dB at 12.5/20/25 kHz |
| Signal-noise ratio (S/N) | 40 dB at 12.5 kHz 43 dB at 20 kHz 45 dB at 25 kHz |
| Nominal audio power output | 0.5 W |
| Nominal audio distortion | ≤ 3 % |
| Audio sensitivity | +1 dB to -3 dB |
| Conducted spurious emission | < -57 dBm |
GPS
| Time to first fix (TTFF) | < 1 minute (cold start) < 10 seconds (warm start) |
| Horizontal accuracy | < 10 meter |
