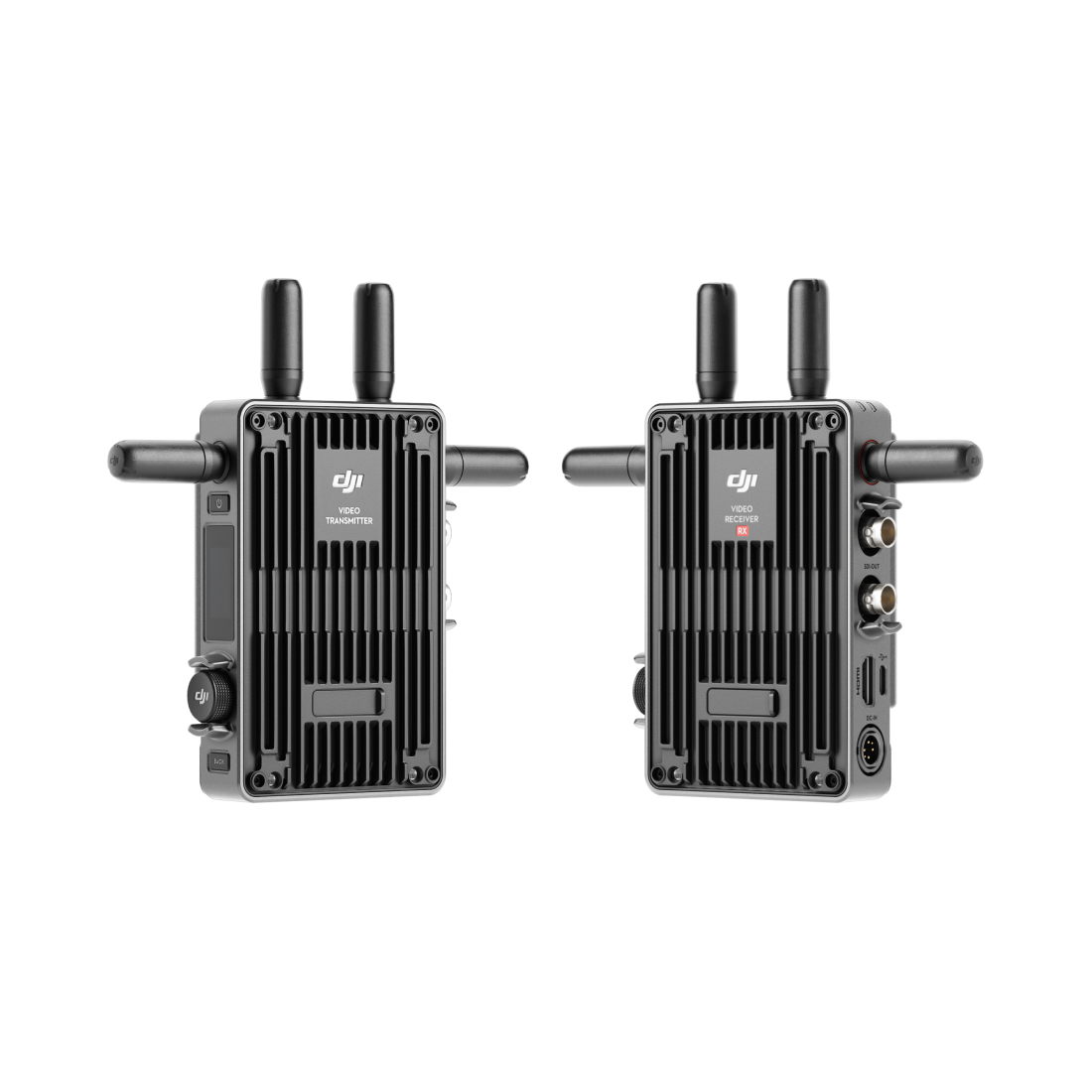

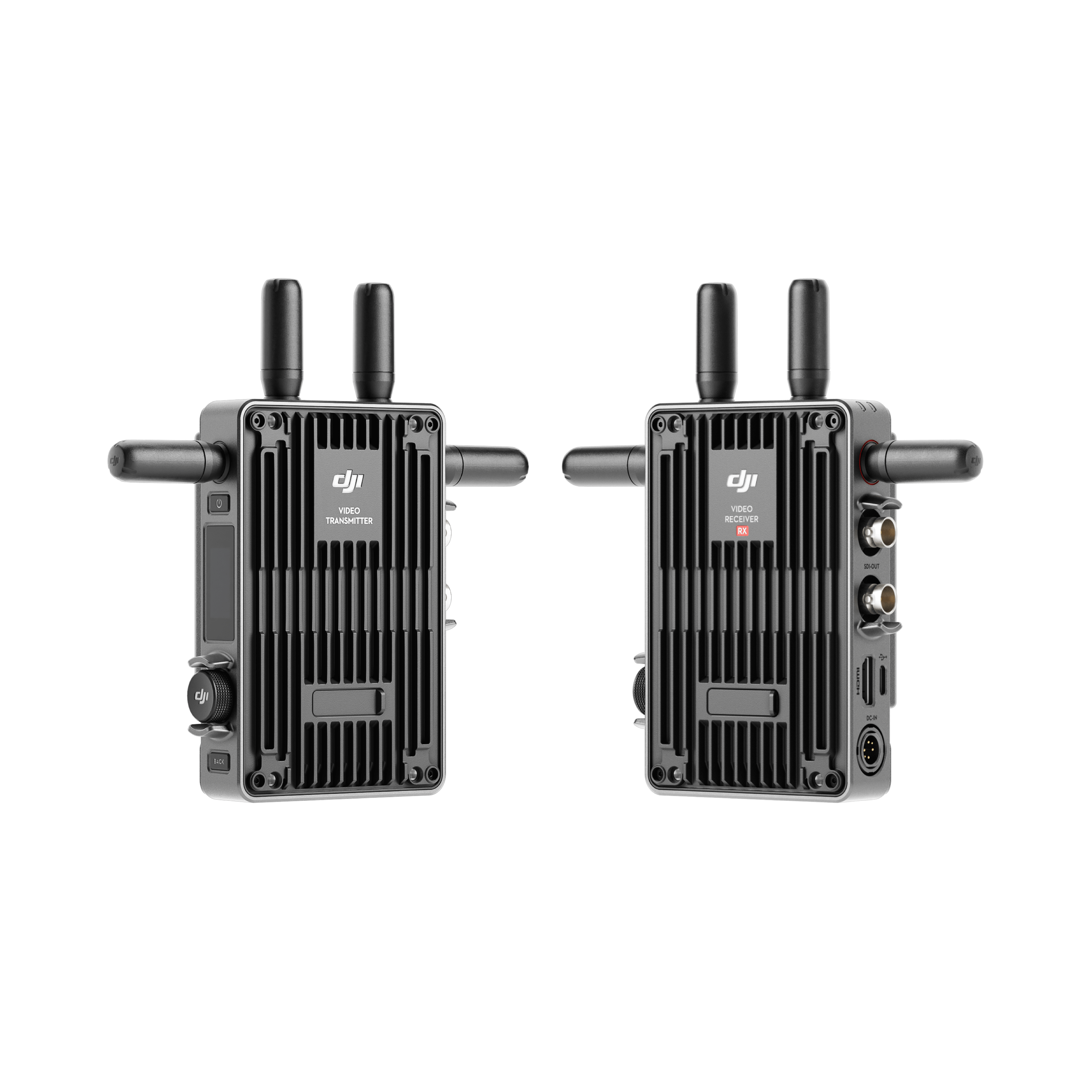

DJI Transmission 1:1 Kit
The DJI Transmission 1:1 Kit is a wireless video system designed to provide a high-definition, low-latency link between a camera and a production monitor. It utilizes O3 Pro technology to deliver video up to 6 km (20,000 ft) away with an ultra-low latency of 68–70 ms.
- Video Quality: Supports up to 1080p/60fps video feed with a maximum bitrate of 40–50 Mbps.
- Signal Stability: Uses triple-band automatic frequency hopping between 2.4 GHz, 5.8 GHz, and DFS bands to maintain a stable connection in interference-heavy environments.
- Security: Features AES 256-bit encryption to protect video feeds from unauthorised access on professional sets.
- Audio Monitoring: Supports 16-bit 48 kHz real-time audio transmission.
Our kits come standard as a 1:1, however we stock extra receiver and receiver monitor units.
Dive into the world of DJI Transmission and High-Bright Monitoring.
I/O
I/O Table for DJI Video Transmitter & Receiver
| Component | Video & Audio I/O | Power & Data I/O |
|---|---|---|
|
DJI Video Transmitter
|
• 1x 3G-SDI Input • 1x 3G-SDI Loop Output • 1x HDMI 1.4 Type-A Input |
• DC Barrel Input (6.8V–17.6V) • USB-C (Firmware/Voice Calls) • 2x RP-SMA Antenna Ports |
|
DJI Video Receiver
|
• 1x 3G-SDI Output • 1x HDMI 1.4 Type-A Output • Embedded Audio (HDMI/SDI) |
• DC Barrel Input (6.8V–17.6V) • USB-C (Firmware/Voice Calls) • 2x RP-SMA Antenna Ports |
Dimensions
| Dimensions (L×W×H) | Weight | |
|---|---|---|
| 127 × 87 × 26 mm | Approx. 350 g | |
|
|
Video Format
| Resolution | Frame Rates (fps) | Mode Support |
|---|---|---|
| 1080p | 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 | All Modes |
| 1080i | 50, 59.94, 60 | Control Mode Only* |
| 720p | 50, 59.94, 60 | All Modes |
