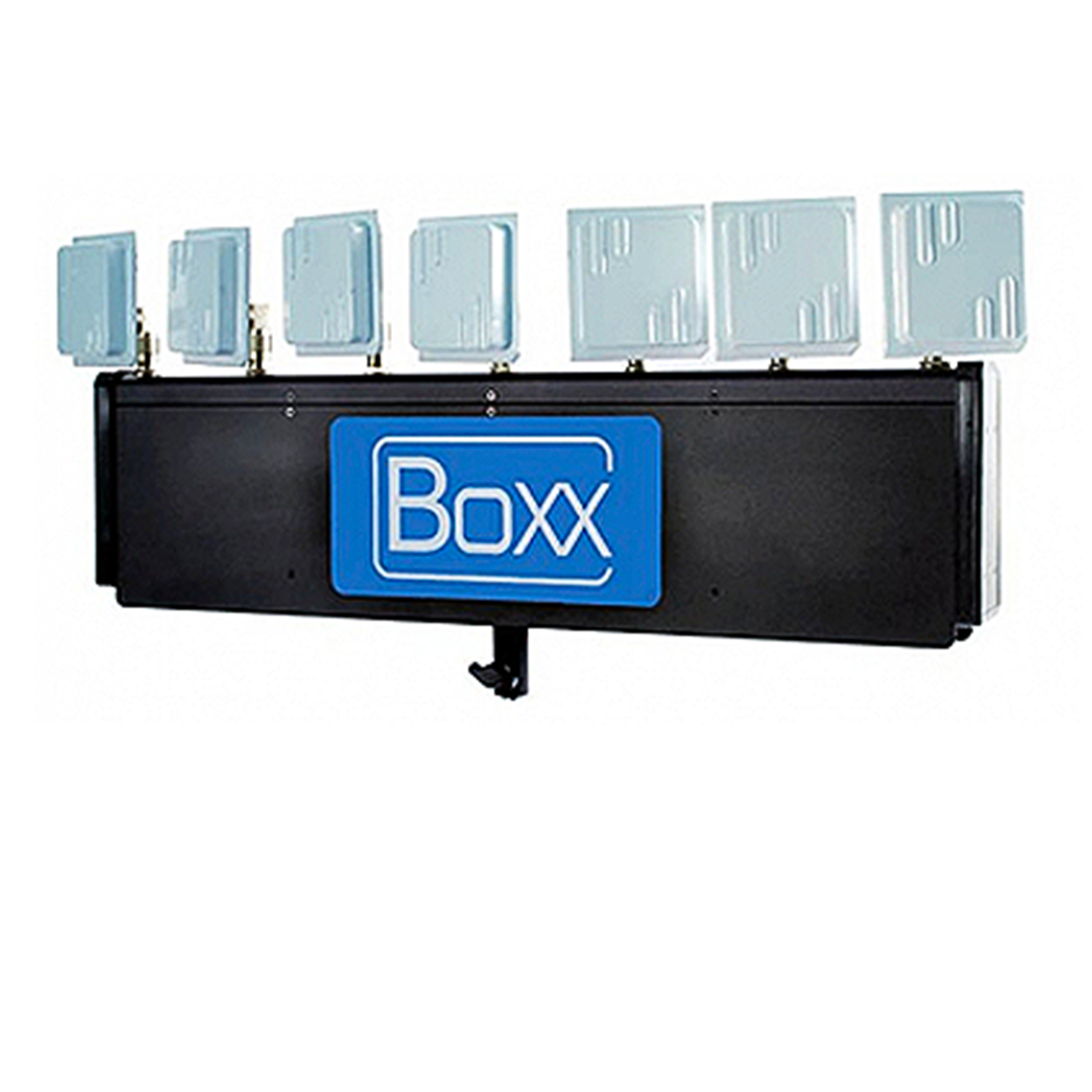

Boxx Meridian

The Boxx Meridian features wireless video and audio transmission at up to 150m line of sight with 1ms latency.

Download Specifications


Boxx Meridian


150m Line of Sight


<0.001 seconds

Video Format


Audio Format

2CH Analogue Line-level

Supported Resolutions

Up to 1080 60i

TX Inputs

1x Hirose (DC Power)

1x BNC (SDI)
1x BNC (Composite)

1x BNC (PB)

1x BNC (PR)

1x BNC (Y)

1x Audio

TX Outputs


RX Inputs

1x USB 2.0 Type B (USB Control)

1x BNC (Genlock)

1x 3-pin XLR (Iris Control)

RX Outputs

1x 3-pin XLR (Tally)

1x BNC (SDI)
1x BNC (Composite)

1x BNC (Y)

1x BNC (R)
1x BNC (B)
2x 3-pin XLR (Audio)


TX: 1kg

RX: 2.7kg
